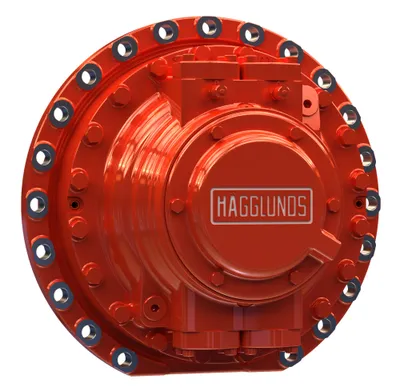

RADIAL PISTON MOTOR HÄGGLUNDS CA 210 160 CA0N00 02 33

Name: Bosch Rexroth R939053120 – RADIAL PISTON MOTOR HÄGGLUNDS CA 210 160 CA0N00 02 33
Brand: Bosch Rexroth
SKU: R939053120

MPN: R939053120 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Hägglunds CA
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R939053120 be shipped?

R939053120 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R939053120 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R939053120 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R939053120, subject to availability and destination.

The Hägglunds CA was specifically designed for heavyweight performance in applications where bulk and weight are significant issues. The result is a powerful solution – a truly compact hydraulic motor with an extraordinary power-to-weight ratio.

Despite its small and lightweight nature, the Hägglunds CA is a real problem-solver, offering multiple mounting options, numerous configurations and a useful throughhole. Plus, it remains as tough as they come. It provides a long service life and reliable operations in the harshest environments, including those with shock loads.

Through hole diameter 110 mm

Tandem mounting possibility

Brake mounting possiblilty

Option for explosive environment available

High power density

Specifications

Product family	Hägglunds CA
Displacement [cm³/rev]	10051
Specific Torque [Nm/bar]	160
Max speed [rpm]	150
Max pressure [bar]	350
Mounting alternatives, shaft	Shrink disc coupling
Motor prepared for tandem kit	Motor without brake or tandem kit
Displacement shift	Single speed motor
Type of seal	NBR (Nitrile)
Through hole kit	No
Increased robustness	No
Design	Special index 33: Motor for marine environment
Frame size	210
Weight [kg]	456
