Bosch Rexroth R914502750

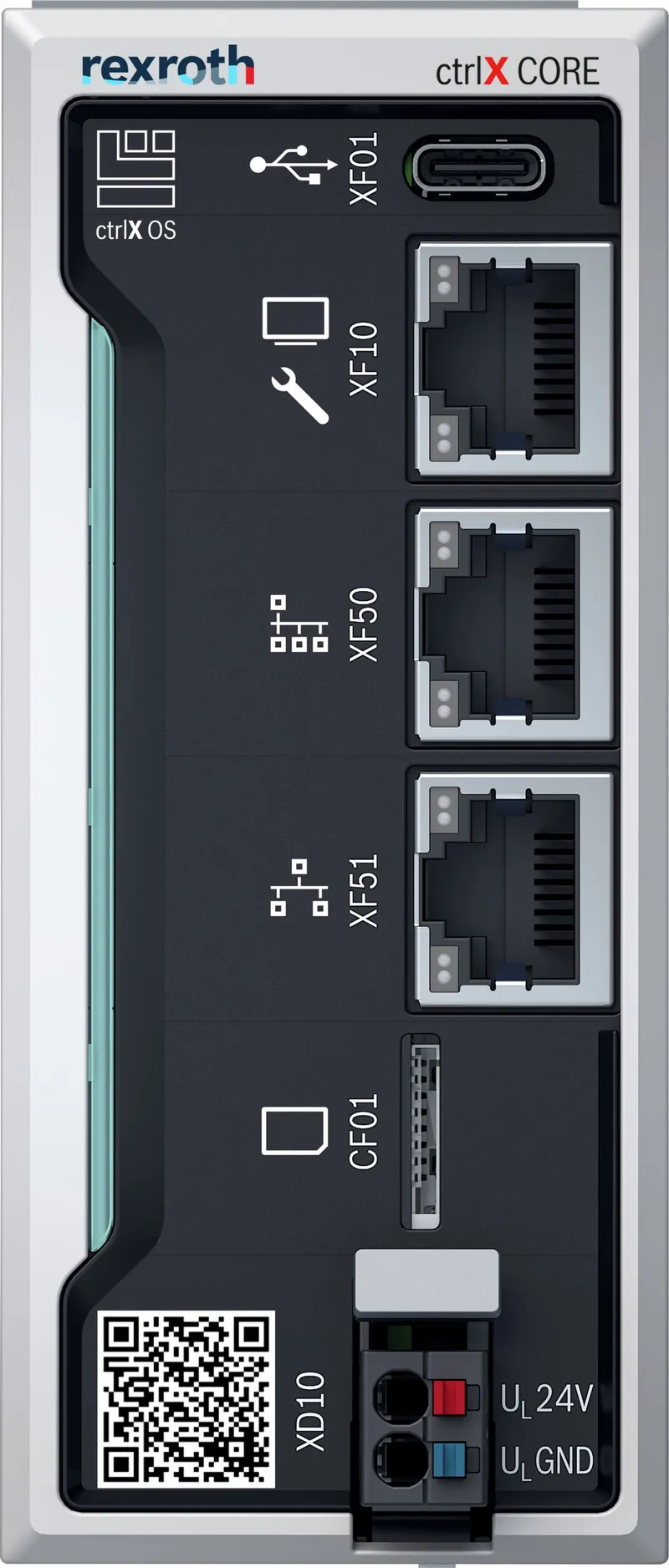

CONTROL COREX-C-X3-11-ANNN-21.01-01RS-NN-NN

MPN: R914502750
Category: ctrlX CORE X3 compact control

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R914502750?

The main features of the ctrlX CORE X3 at a glance:

- SoC Xilinx ZYNQ Ultrascale, ARM A53 Quadcore

- 2 GB RAM

- 4 GB eMMc

- 1 MBit Retain data

- 1x USB-C

- 1 µSD card slot

- 3x 1 GBit Ethernet interfaces

- Modern industrial-grade Linux-based ctrlX OS operating system

Specifications

Functions ctrlX CORE	ctrlX OS License - Bosch Rexroth - EtherCAT Master Basic; ctrlX OS License - Bosch Rexroth - Motion Standard 4 Axes
Communication option	EtherCAT Master
Processor	SoC Xilinx ZYNQ Ultrascale+
Width [mm]	45
Height [mm]	105
Depth [mm]	87
International protection code	IP20
Protection class	III
Mass memory	4GB eMMC
RAM	2 GB
Type of battery	CR1025
Vibration resistance	Vibrations, sinusoidal in all 3 axes, 5 Hz - 8.4 Hz with 3.5 mm amplitude. 8.4 Hz -150 Hz with 1 g peak acceleration
Maximum permitted voltage range [V DC]	18-31.2
Extension option 1	without extension
Extension option 2	without extension
Type of interface	1 x slot for SD card; 1 × USB host, TYPE C (USB 2.0); Engineering port (RJ45) 3 × Ethernet connection (10 Mbit, 100 Mbit, 1 Gbit)
COREX design	Compact
Remanent memory	128 byte
Power input UL	7.68 W
Current requirement UL	320 mA
Permissible air humidity (storage) [%]	5-85
Permissible air humidity (transport) [%]	5-85
Ambient temperature (storage and transport) [°C]	-40-70
Ambient temperature during operation	2,000 m to 3,000 m: -25 °C to +50 °C; 3,000 m to 4,000 m: -25 °C to +45 °C; 4,000 m to 5,000 m: -25 °C to +40 °C; Up to 2,000 m: -25 °C to +55 °C
Maximum operating altitude [m]	5000
Weight [kg]	0.5
