Bosch Rexroth R913037445

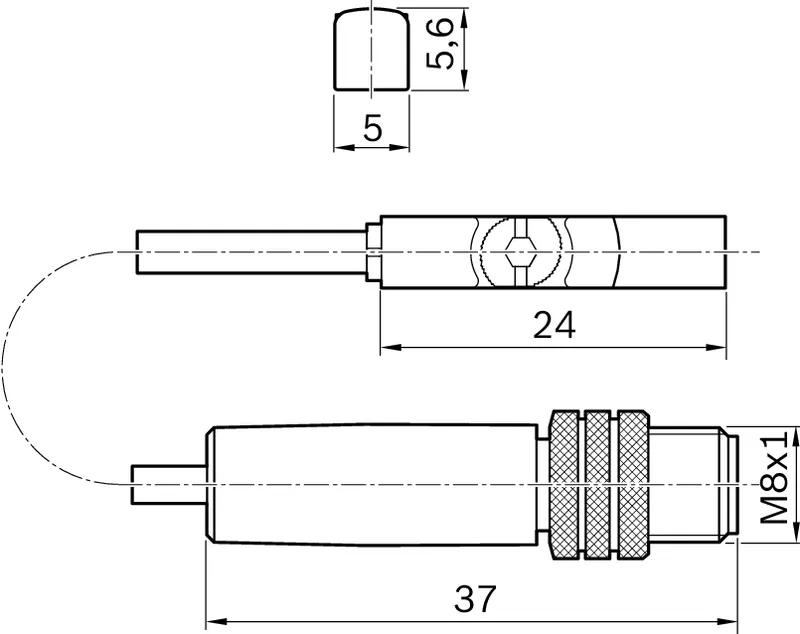

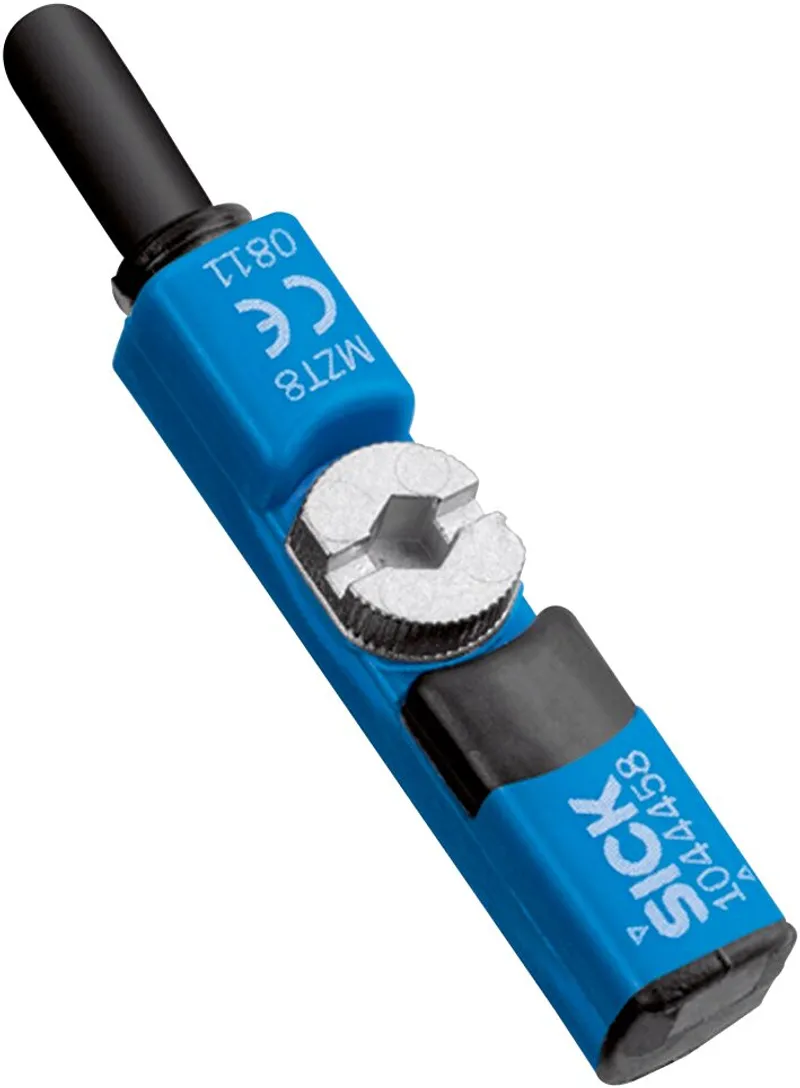

MAGNETIC FIELD SENSOR T-SLOT PNP-NC 0.5M M8

MPN: R913037445
Category: Electrical accessories for electromechanical cylinders

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R913037445?

Bosch Rexroth MAGNETIC FIELD SENSOR T-SLOT PNP-NC 0.5M M8, manufacturer part number R913037445. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Electrical accessories for electromechanical cylinders	Magnetic sensors
Electrical accessories for linear axes	Magnetic sensors
Use	Limit switch
Maximum acceleration rate amax [m/s²]	5.0
Note: Max. acceleration amax	*) Technical data only for the cast-on connection cable (0.5 m) on the magnetic sensor. Even more p
Connection type	0.5 m cable and M8x1 plug, 3-pin with knurled screw connection
Switching function version	PNP/NC
Permissible ambient temperature (min. ... max.)	-30 °C ... +80 °C
Cable cross-section	3 x 0.14 mm²
Operating voltage (min. … max.)	10 V DC ... 30 V DC
Dynamic bending radius	≥ 10xD
Static bending radius	≥ 5xD
Bending cycles	> 2 million
Weight [kg]	0.02
Switch-on suppression	yes
Function indicator	yes
Functional principle	magnetic
Dynamic bending radius footnote	*) Technical data only for the cast-on connection cable (0.5 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Footnote bending radius, static	*) Technical data only for the cast-on connection cable (0.5 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Bending cycles footnote	*) Technical data only for the cast-on connection cable (0.5 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Footnote cable diameter d with tolerance	*) Technical data only for the cast-on connection cable (0.5 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Footnote cable cross-section	*) Technical data only for the cast-on connection cable (0.5 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Footnote: Max. permissible travel speed	Technische Daten nur für die angegossene Anschlussleitung (0,5 m) am magnetischen Sensor. Noch mehr Performance, z.B. für den Einsatz in einer Energiekette, bieten die angebotenen Verlängerungsleitungen.
Suitable for drag chains footnote	*) Technical data only for the cast-on connection cable (0.5 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Weld spark-resistant footnote	*) Technical data only for the cast-on connection cable (0.5 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Torsion-resistant footnote	*) Technical data only for the cast-on connection cable (0.5 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Cable diameter D [mm]	2.9
Cable diameter D tolerance [mm]	±0.15
Compatible	EMC, MKK/MKR-065/080/110, MLR-080/110, FMS, FMB, PSK
Short-circuit protection	no
Load current [A]	≤200
Max. permissible approach speed [m/s]	5
Max. permissible travel speed [m/s]	5
Mean time to dangerous failure (MTTFd) [Years]	2339
Pulse extension (off delay) [ms]	20
Switching frequency [Hz]	3000
Suitable for drag chains	Yes
Protection class	IP68
Weld spark-resistant	yes
Torsion-resistant	no
Reverse polarity protection	no
