Bosch Rexroth R911428356

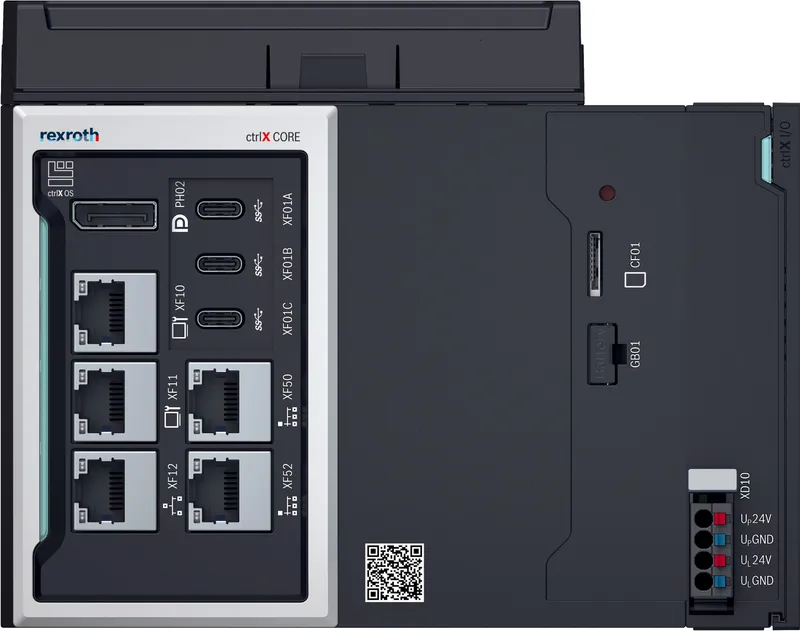

CONTROL COREX-M-X7-31-B4NN-21.01-03RS-NN-NN

MPN: R911428356
Category: ctrlX COREplus X7 modular control

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R911428356?

The industrial-grade and long-term available ctrlX CORE control platform has a broad range of applications and can e.g. be used in PLC applications in the general mechanical engineering market via motion applications for simple handling tasks and as pure open and industrial-grade control platform for customer-specific expertise.

With numerous features on all levels - from the design via the performance to the software and networking, Bosch Rexroth thus offers much more than only a powerful control. ctrlX CORE is the integrated, flexible and open control platform preparing every factory for the future.

By default, ctrlX CORE consistently relies on EtherCAT as automation bus and with integrated engineering, smoothly integrates into the standardized ecosystem. At the same time, the platform supports all common communication standards for connection to the IT level. The Linux-based operating system is open for the integration of all ctrlX CORE and ctrlX WORKS engineering apps as well as other partners and customer-specific apps. The integrated ctrlX Data Layer manages the communication between the apps in real-time and non-real-time.

The ctrlX Device Portal allows the controls to be managed centrally and maintained and updated remotely. Certified according to IEC 62443, ctrlX CORE securely connects the machine to the IT level.

Specifications

Functions ctrlX CORE	without
Processor	Intel CoreTM I7 1185GRE
Width [mm]	180
Height [mm]	126
Depth [mm]	87
International protection code	IP20
Protection class	III
Mass memory	32 GB eMMc
RAM	16 GB
Type of battery	CR1025
Vibration resistance	Oscillations, sinusoidal in all three axes 5 Hz - 8.4 Hz with 3.5 mm amplitude 8.4 Hz -150 Hz with 1 g peak acceleration
Shock test	Shock stress: Shock resistance in all three axes, 11 ms semi-sinusoidal 15 g
Maximum permitted voltage range [V DC]	19.2-30
Broadband noise	20-500 Hz with 1.22 g RMS (‪Root-Mean-Square‬), 30 min in all three axes
Extension option 1	AI module
Extension option 2	without extension
Extension option 3	without extension
Type of interface	1 x slot for SD card; 1 × display port; 3 × USB host, TYPE C (USB3.1), maximum cable length of 3 m; Engineering port (RJ45) 5 × Ethernet connection (10 Mbit, 100 Mbit, 1 Gbit)
COREX design	Modular
Remanent memory	2 MB
Power input UP	Typ. 0.12 W (without I/O modules), 192 W max., at UP = 24 V
Power input UL	55.2 W
Current requirement UL	2.3 A
Permissible air humidity (during operation) [%]	5-85
Permissible air humidity (storage) [%]	5-85
Permissible air humidity (transport) [%]	5-85
Ambient temperature (storage and transport) [°C]	-40-70
Ambient temperature during operation	2,000 m to 3,000 m: -25 °C to +50 °C; 3,000 m to 4,000 m: -25 °C to +45 °C; 4,000 m to 5,000 m: -25 °C to +40 °C; Up to 2,000 m: -25 °C to +55 °C
Maximum operating altitude [m]	5000
Weight [kg]	1.57

R911428356: frequently asked questions

When can R911428356 be shipped?

R911428356 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R911428356 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R911428356 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R911428356, subject to availability and destination.
