Bosch Rexroth R911424176

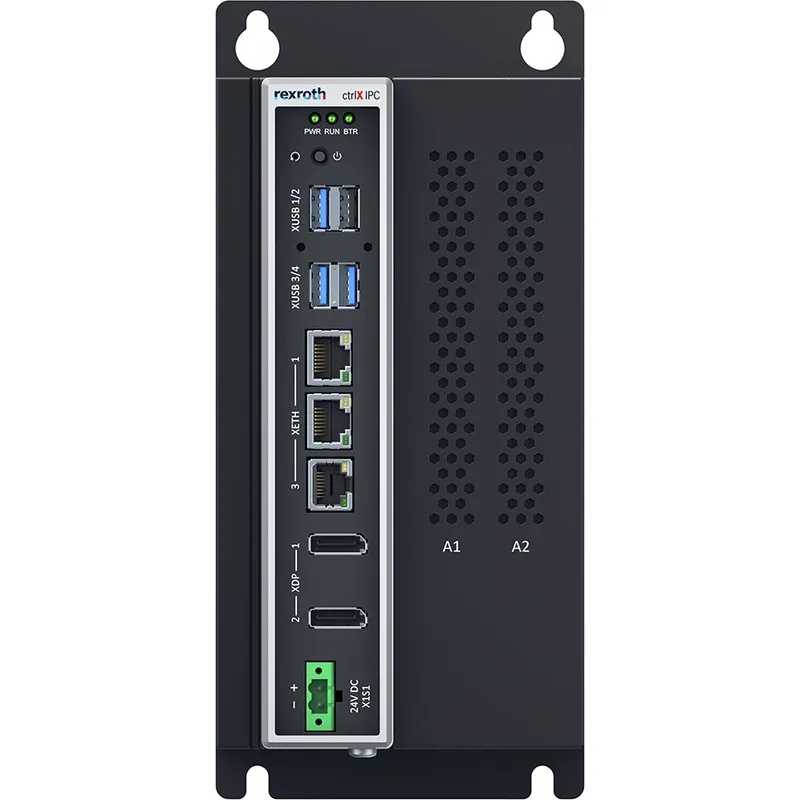

INDUSTRIAL COMPUTER PR4300.2-1D3-AA-00-BAN-C1-NNNNNN-H
- MPN
- R911424176
- Category
- ctrlX IPC PR4 Mid-Range
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R911424176?
The compact box PCs of the PR series are available in different housing versions. Various interfaces can be used to connect the spatially separated DR multi-touch displays. The use of the latest processor generation with low power dissipation allows a fanless design for the device. High performance as well as a variety of expansion options and standard interfaces, including real-time Ethernet communication, make the PR box PC the ideal solution platform for all HMI-based applications. The integrated TPM 2.0 chip provides the necessary security in the IoT environment, which makes the robust devices ideal for Industry 4.0 applications.
Operating system: Windows 10 IoT Enterprise
CPU: Intel Core i3/i5/i7
Extension slots: 2 x mini PCIe, 1 x half size mini PCIe
Mass storage: 2 x SSD/HDD (RAID)
Specifications
Specifications
| Screen size | Without display |
| Processor | Intel CoreTM I7 1365URE 4.9 GHz |
| Width [mm] | 110 |
| Height [mm] | 230 |
| Depth [mm] | 147 |
| International protection code | IP20 |
| Mass memory | 256 GB NVMe |
| RAM | 16 GB |
| Supply voltage | 24 V DC |
| Type of interface | 1 x USB 2.0; 3 x USB 3.2 |
| Operating system | Win10 IoT Enterprise LTSC 2021 High End |
| PCI/PCIe slots | 2x PCIe x4 (1x blocked by CDI+) |
| Safety | TPM 2.0 |
| Interface (Display) | DisplayPort |
| Permissible air humidity (storage) [%] | 85 |
| Permissible air humidity (transport) [%] | 85 |
| Ambient temperature (storage and transport) [°C] | -20-60 |
| Ambient temperature (during operation) [°C] | 0-55 |
| Weight [kg] | 3 |
R911424176: frequently asked questions
When can R911424176 be shipped?
R911424176 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R911424176 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R911424176 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R911424176, subject to availability and destination.
