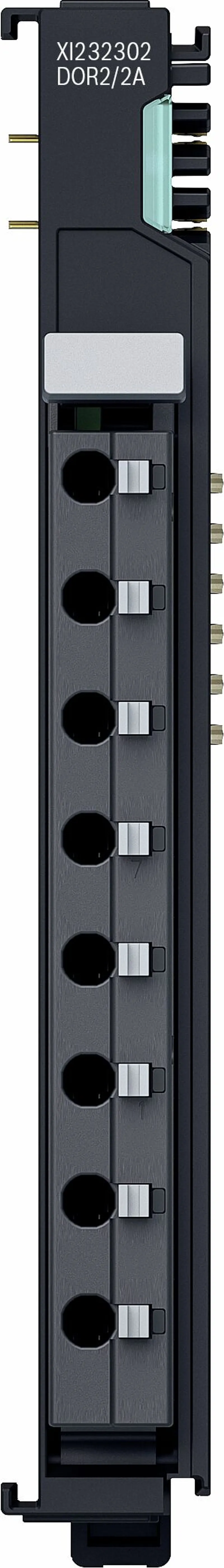

DIGITAL OUTPUT MODULE XI232302

MPN: R911420202
Category: XI2 Digital Outputs

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R911420202?

The relay output module XI232302 is intended for use in a ctrlX I/O station. The module has two channels with changeover contacts designed for AC 250 V and 2 A. The channels are independent of each other and led out potential-free. The switching state of the respective channel is indicated on the LED on the detachable peripheral connector.

The logic and peripheral supply as well as the EtherCAT-based module communication are routed through the module.

Specifications

Connection type	Push-in
Number of channels	2
Max. output current per channel [A]	2
Width [mm]	12
Height [mm]	105
Depth [mm]	99
International protection code	IP20
Protection class	III
Backplane-Bus	Standard-EtherCAT über LVDS
Switching cycles electr.	0.6 million
EMC resistance	EN 61000-6-2 and EN 61000-6-4
Bit width, output data in the process data image	1 byte
Maximum power dissipation in the module [W]	1.2
Post-assembly position	Vertical, on a horizontal support rail
Electrical isolation	1211 V DC UP to UL, 707 V DC UP/UL to FE, 1600 VDC UP/UL/FE to Relais, 3000 V AC UP/UL/Housing to Contacts, 3000 V AC Contacts Ch1 to Ch2
Switching cycles mech.	10 million
Current requirement UL	25 mA
Current requirement Up	25 mA
Net current module outputs [A]	4
Nominal voltage (UL/UP)	DC 24 V (19.2 V to 30 V, including tolerance and residual ripple) PELV/SELV (safety extra-low voltage)
Overvoltage category	2
Conductor cross-section	AWG: 24 ... 16; Flexible: 0.2-1.5 mm²; rigid: 0.2-1.5 mm²
Overload protection	External protection necessary
Permissible air humidity (storage) [%]	10-95
Permissible air humidity (transport) [%]	10-95
Ambient temperature (storage and transport) [°C]	-40-70
Ambient temperature during operation	2,000 m to 3,000 m: -25 °C to +50 °C; 3,000 m to 4,000 m: -25 °C to +45 °C; 4,000 m to 5,000 m: -25 °C to +40 °C; Up to 2,000 m: -25 °C to +55 °C
Maximum operating altitude [m]	5000
Contamination level	2, no condensation
Weight [kg]	0.13
