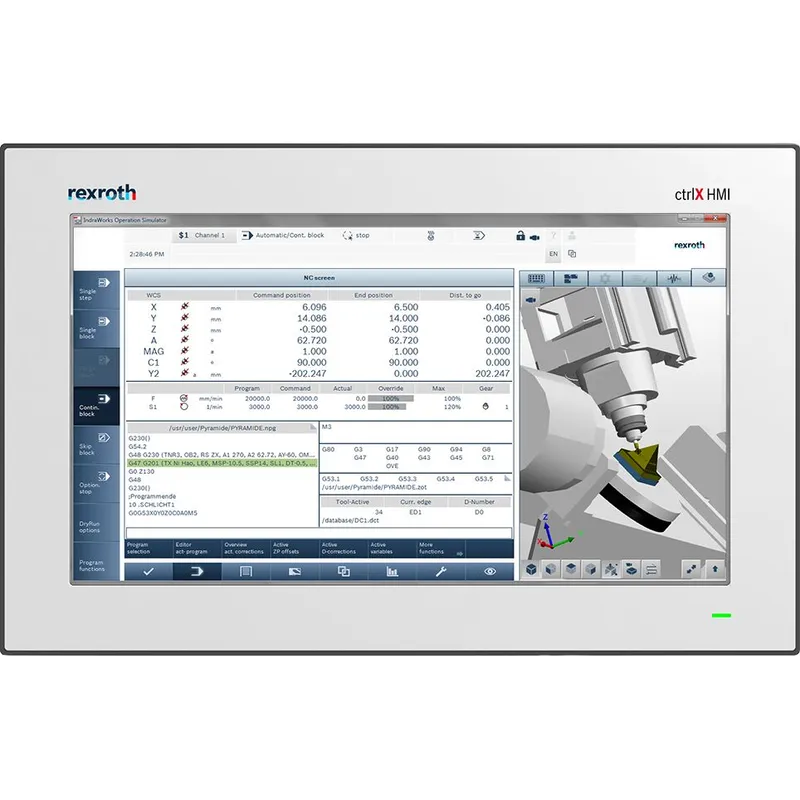

CONTROL PANEL VR3115.1-1A1-AA-N0N-NN-D1-NNNNNN-N-HMINN
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ctrlX HMI VR3 Mid Range |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R911416125 be shipped?
R911416125 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R911416125 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R911416125 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R911416125, subject to availability and destination.
The VR series Panel PCs combine the properties of the PR box PC and the freestanding DR multi-touch displays. The extremely versatile scalability of the display format and the high performance, plus a multitude of expansion options and standard interfaces, including real-time Ethernet communication, make the VR Panel PC the obvious platform solution for all HMI-based applications. The integrated TPM 2.0 chip provides the necessary security in the IoT environment and makes the robust units predestined for Industry 4.0.
CPU: Intel ATOM E3940
Extension slots: 1 x Mini PCIe
Multi-touch gesture control
Horizontal and vertical assembly
Operating system: Windows 10 IoT Enterprise
Upgrade options via extension slots
Specifications
Specifications
| Function packages | HMI-Systems |
| Screen size | 15.6" display / 16:9 |
| Processor | Intel ATOM E3940 1.6 GHz |
| Width [mm] | 420 |
| Height [mm] | 269 |
| Depth [mm] | 108 |
| International protection code | IP66 |
| Mass memory | 1x min. 32GB SSD |
| RAM | 8 GB |
| Type of interface | 2 x USB 2.0; 2 x USB 3.0 |
| Display resolution | 1366 x 768 Pixel |
| Operating system | Windows 10 IoT 2019 |
| Safety | TPM 2.0 |
| Permissible air humidity (storage) [%] | 5-85 |
| Permissible air humidity (transport) [%] | 5-85 |
| Ambient temperature (storage and transport) [°C] | -20-60 |
| Ambient temperature (during operation) [°C] | 0-55 |
| Weight [kg] | 8.42 |
