STATOR MST360D-0018-FT-N0CN-D303
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | MBT Synchronous Torque Motors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R911412171 be shipped?
R911412171 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R911412171 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R911412171 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R911412171, subject to availability and destination.
The Rexroth servo motors product range combines high dynamics with compact dimensions and best energy efficiency. Rotors with low and medium inertia are available with optimum mass customization. For intelligent solutions in the Industry 4.0 environment, the motors serve as data sources. Special explosion proof versions according to ATEX round out the portfolio.
Specifications
Specifications
| Maximum torque [Nm] | 1150.0 |
| Maximum speed [rpm] | 350.0 |
| Rated speed [min⁻¹] | 235 |
| Rated power [kW] | 12.9 |
| Cooling type | Water cooling |
| Rated torque [Nm] | 525.0 |
| Maximum current [A] | 72.0 |
| Outside cooling jacket diameter [mm] | 385 |
| Cooling jacket length [mm] | 150 |
| International protection code | IP00 |
| Encapsulation | Open aluminum cooling jacket |
| electrical connection | Axially on stator side with larger outer diameter |
| Rated current [A] | 28.3 |
| Weight [kg] | 27 |
More Bosch Rexroth parts
Available on requestPOWER CABLE RKL4805/005,5 (RLS1701-INK0670-RLS1702)

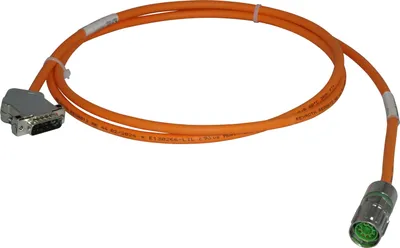

Available on requestENCODER CABLE RKG0063/005,5 (RGS1781-REG0012-RGS1782)
