Bosch Rexroth R911411951

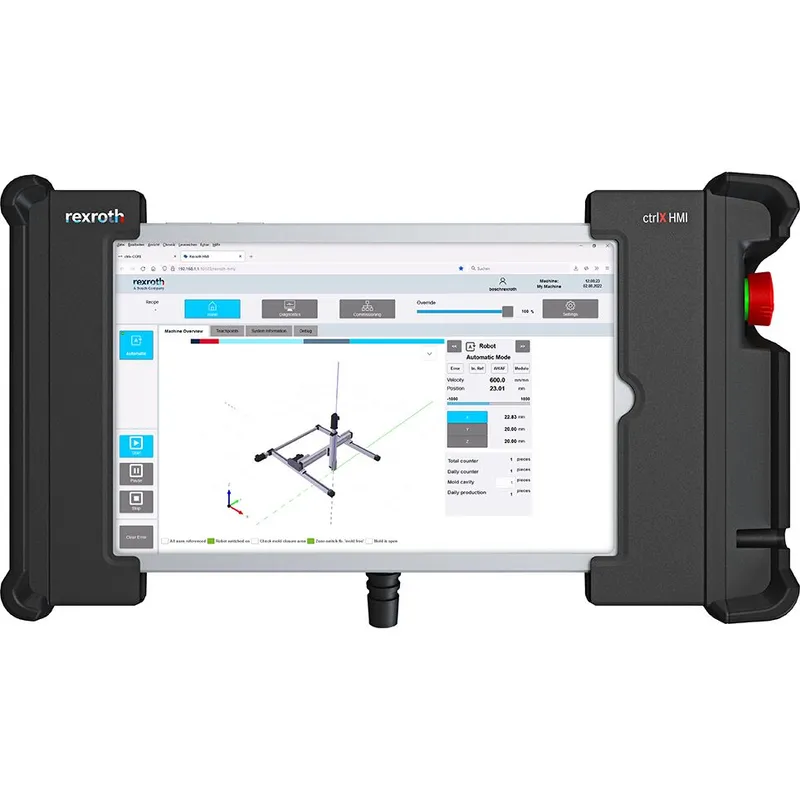

MANUAL CONTROL UNIT PF10.1-A10-AA-NN

MPN: R911411951
Category: PF10 Panel Frame

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R911411951?

Mobile hand-held terminal that enables the use of consumer tablets in industrial environments. Thanks to an adjustable frame, a wide variety of 10” devices can be integrated into the system. The data transfer of the tablet takes place via the radio interface and must be set up separately.

The safety functions emergency stop pushbutton and three-stage enabling control button as well as the charging voltage for the connected tablets are transmitted via the optional 5 m or 10 m long cable.

The safety functions are discreetly wired to the safety control in the control cabinet. A separate power supply unit must be installed for the charging voltage of the tablets.

Specifications

Screen size	10" display / 16:9
Width [mm]	355
Height [mm]	137
Depth [mm]	93
International protection code	IP65
Permissible air humidity (during operation) [%]	45 - 85
Ambient temperature (storage and transport) [°C]	-25-50
Ambient temperature (during operation) [°C]	-25-50
Weight [kg]	2.25
Cable length [m]	10
