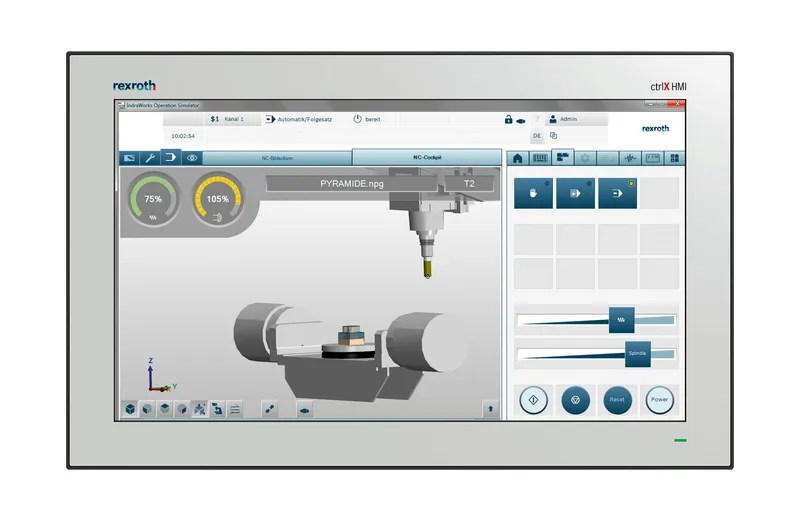

CONTROL PANEL VR4215.1-1B2-AA-000-NN-C1-NNNNNNNNNNNN-H
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ctrlX HMI VR4 Hight End |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R911407875 be shipped?
R911407875 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R911407875 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R911407875 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R911407875, subject to availability and destination.
The VR series Panel PCs combine the properties of the PR box PC and the freestanding DR multi-touch displays. The extremely versatile scalability of the display format and the high performance, plus a multitude of expansion options and standard interfaces, including real-time Ethernet communication, make the VR Panel PC the obvious platform solution for all HMI-based applications. The integrated TPM 2.0 chip provides the necessary security in the IoT environment and makes the robust units predestined for Industry 4.0. CPU: Intel Core i3/i5/i7 Extension slots: 2 x mini PCIe, 1 x half size PCIe Multi-touch gesture control Horizontal and vertical assembly Operating system: Windows 10 IoT Enterprise Upgrade options via extension slots
Specifications
Specifications
| Screen size | 15.6" display / 16:9 |
| Processor | Intel CoreTM I5 6300U 2.4 GHz |
| Width [mm] | 420 |
| Height [mm] | 269 |
| Depth [mm] | 108 |
| International protection code | IP66 |
| Mass memory | 1x min. 256GB SSD |
| RAM | 16 GB |
| Type of interface | 2 x USB 2.0; 2 x USB 3.0 |
| Display resolution | 1366 x 768 Pixel |
| Operating system | Windows 10 IoT 2019 |
| Safety | TPM 2.0 |
| Permissible air humidity (storage) [%] | 5-85 |
| Permissible air humidity (transport) [%] | 5-85 |
| Ambient temperature (storage and transport) [°C] | -20-60 |
| Ambient temperature (during operation) [°C] | 0-55 |
| Weight [kg] | 10 |
