Home / Bosch Rexroth / ctrlX HMI VR4 Hight End / Bosch Rexroth R911404599

Bosch Rexroth R911404599

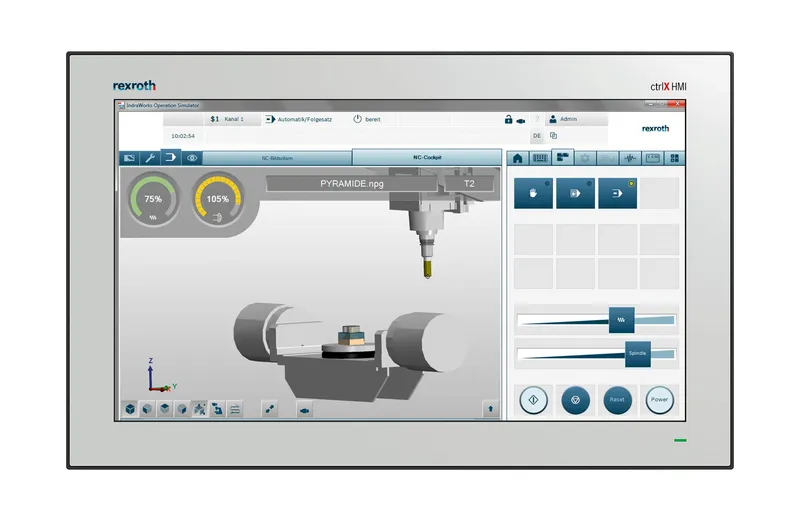

CONTROL PANEL VR4321.1-1B2-AA-000-NN-D1-NNNNNNNNNNNN-H

MPN: R911404599
Category: ctrlX HMI VR4 Hight End

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R911404599?

The Panel PC product line combines the features of the Box PC and remote displays and terminals into a compact PC solution. The extremely versatile display format scalability, in addition to a wide range of expansion options and standard interfaces make the Panel PC the ideal platform solution for all HMI-based applications.

CPU: Intel Core i3/i5/i7

Extension slots: 2 x mini PCIe, 1 x half size PCIe

Multi-touch gesture control

Horizontal and vertical assembly

Operating system: Windows 10 IoT Enterprise

Upgrade options via extension slots

Specifications

Screen size	21.5" display / 16:9
Processor	Intel CoreTM I7 6600U 2.6 GHz
Width [mm]	558
Height [mm]	350
Depth [mm]	108
International protection code	IP66
Mass memory	1x min. 256GB SSD
RAM	16 GB
Type of interface	2 x USB 2.0; 2 x USB 3.0
Display resolution	1920 x 1080 Pixel
Operating system	Windows 10 IoT 2019
Safety	TPM 2.0
Permissible air humidity (storage) [%]	5-85
Permissible air humidity (transport) [%]	5-85
Ambient temperature (storage and transport) [°C]	-20-60
Ambient temperature (during operation) [°C]	0-55
Weight [kg]	13.1

R911404599: frequently asked questions

When can R911404599 be shipped?

R911404599 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R911404599 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R911404599 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R911404599, subject to availability and destination.
