Bosch Rexroth R911404205

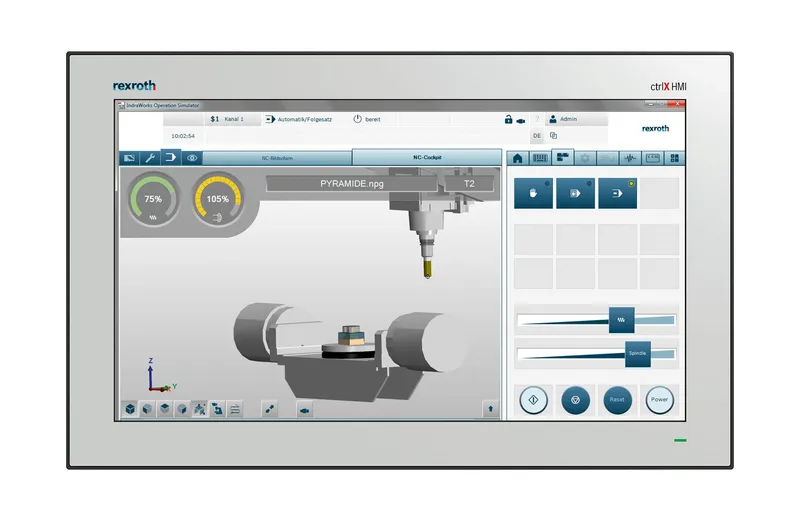

CONTROL PANEL VR4121.1-1A1-AA-000-NN-C1-NNNNNNNNNNNN-H

MPN: R911404205
Category: ctrlX HMI VR4 Hight End

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R911404205?

The Panel PC product line combines the features of the Box PC and remote displays and terminals into a compact PC solution. The extremely versatile display format scalability, in addition to a wide range of expansion options and standard interfaces make the Panel PC the ideal platform solution for all HMI-based applications.

CPU: Intel Core i3/i5/i7

Extension slots: 2 x mini PCIe, 1 x half size PCIe

Multi-touch gesture control

Horizontal and vertical assembly

Operating system: Windows 10 IoT Enterprise

Upgrade options via extension slots

Specifications

Screen size	21.5" display / 16:9
Processor	Intel CoreTM I3 6100U 2.3 GHz
Width [mm]	558
Height [mm]	350
Depth [mm]	108
International protection code	IP66
Mass memory	1x min. 64GB SSD
RAM	8 GB
Type of interface	2 x USB 2.0; 2 x USB 3.0
Display resolution	1920 x 1080 Pixel
Operating system	Windows 10 IoT 2019
Safety	TPM 2.0
Permissible air humidity (storage) [%]	5-85
Permissible air humidity (transport) [%]	5-85
Ambient temperature (storage and transport) [°C]	-20-60
Ambient temperature (during operation) [°C]	0-55
Weight [kg]	13.2
