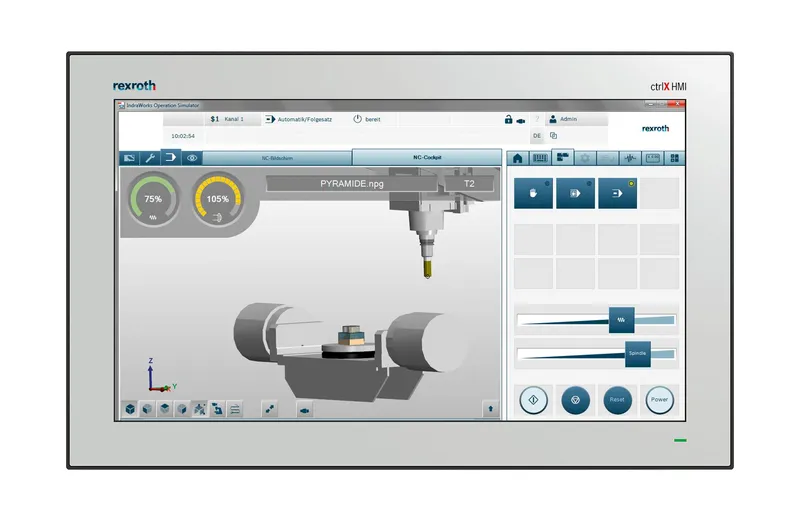

CONTROL PANEL VR4215.1-1B1-AA-000-NN-C1-NNNNNNNNNNNN-H

Name: CONTROL PANEL VR4215.1-1B1-AA-000-NN-C1-NNNNNNNNNNNN-H
Brand: Bosch Rexroth
SKU: R911403616

MPN: R911403616 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ctrlX HMI VR4 Hight End
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R911403616 be shipped?

R911403616 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R911403616 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R911403616 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R911403616, subject to availability and destination.

The Panel PC product line combines the features of the Box PC and remote displays and terminals into a compact PC solution. The extremely versatile display format scalability, in addition to a wide range of expansion options and standard interfaces make the Panel PC the ideal platform solution for all HMI-based applications. CPU: Intel Core i3/i5/i7 Extension slots: 2 x mini PCIe, 1 x half size PCIe Multi-touch gesture control Horizontal and vertical assembly Operating system: Windows 10 IoT Enterprise Upgrade options via extension slots

Specifications

Screen size	15.6" display / 16:9
Processor	Intel CoreTM I5 6300U 2.4 GHz
Width [mm]	420
Height [mm]	269
Depth [mm]	108
Orientation	Horizontal
International protection code	Front IP66/ back IP20
Mass memory	1x min. 256GB SSD
RAM	8 GB
Supply voltage	24 V DC
Type of interface	2 x USB 2.0; 2 x USB 3.0
Display resolution	1366 x 768 Pixel
Operating system	Windows 10 IoT 2019
PCI/PCIe slots	2x Full-size mPCIe
Safety	TPM 2.0
Permissible air humidity (storage) [%]	5-85
Permissible air humidity (transport) [%]	5-85
Ambient temperature (storage and transport) [°C]	-20-60
Ambient temperature (during operation) [°C]	0-55
Weight [kg]	10.1
