Bosch Rexroth R911403012

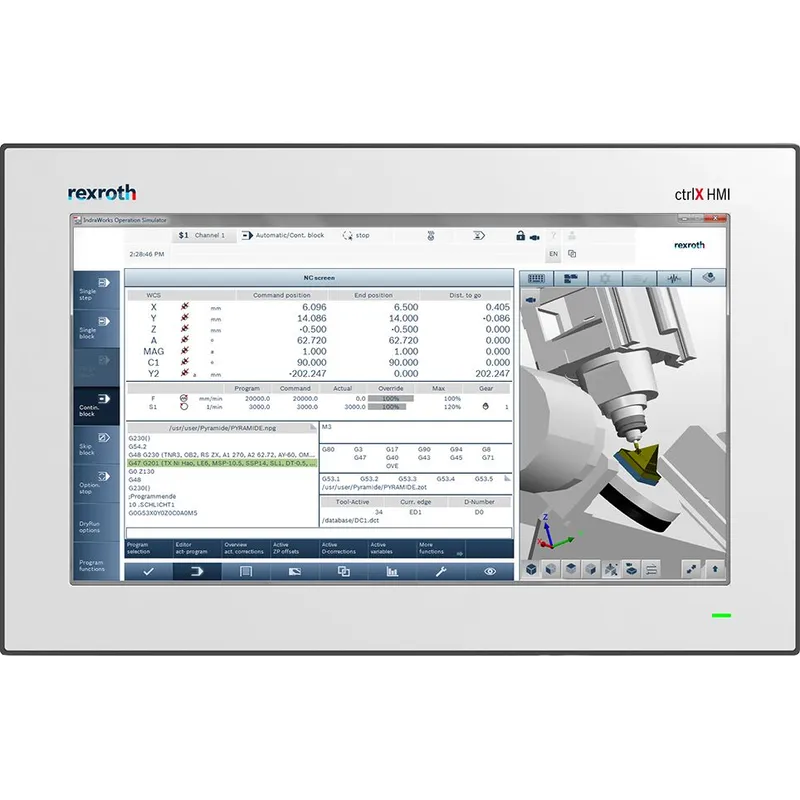

CONTROL PANEL VR3115.1-1B1-AA-N0N-NN-D1-NNNNNNNNNNNN-H

MPN: R911403012
Category: ctrlX HMI VR3 Mid Range

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R911403012?

The Panel PC product line combines the features of the Box PC and remote displays and terminals into a compact PC solution. The extremely versatile display format scalability, in addition to a wide range of expansion options and standard interfaces make the Panel PC the ideal platform solution for all HMI-based applications.

CPU: Intel ATOM E3940

Extension slots: 1 x Mini PCIe

Multi-touch gesture control

Horizontal and vertical assembly

Operating system: Windows 10 IoT Enterprise

Upgrade options via extension slots

Specifications

Screen size	15.6" display / 16:9
Processor	Intel ATOM E3940 1.6 GHz
Width [mm]	420
Height [mm]	269
Depth [mm]	75
Orientation	Horizontal
International protection code	Front IP66/ back IP20
Mass memory	1x min. 256GB SSD
RAM	8 GB
Supply voltage	24 V DC
Type of interface	2 x USB 2.0; 2 x USB 3.0
Display resolution	1366 x 768 Pixel
Operating system	Windows 10 IoT 2019
PCI/PCIe slots	1x Full-size mPCIe
Safety	TPM 2.0
Permissible air humidity (storage) [%]	5-85
Permissible air humidity (transport) [%]	5-85
Ambient temperature (storage and transport) [°C]	-20-60
Ambient temperature (during operation) [°C]	0-55
Weight [kg]	8
