Bosch Rexroth R911381362

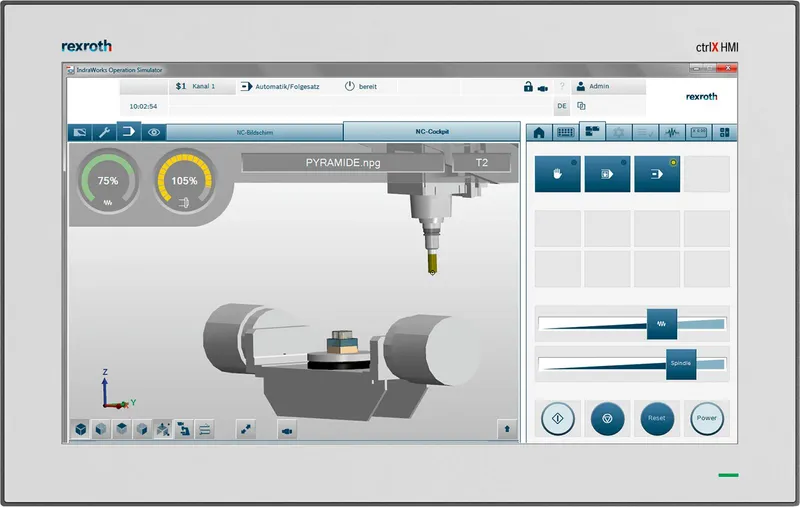

CONTROL/DISPLAY UNIT DR0015.1-12-NNN-AA

MPN: R911381362
Category: ctrlX HMI DR Built in Display

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R911381362?

The high-resolution displays of the DR series from the ctrlX HMI range are available in scaled sizes. They enable exact operation by means of a capacitive 10-point multi-touchscreen. Horizontal and vertical installation is possible. Anti-reflective and chemically hardened front glass makes them resistant to adverse environmental influences and guarantees a long service life. With the long-distance interface, distances of up to 100 m between operating display and box PC can be realized. Users can choose between using two displays in parallel or three displays in series.

Horizontal and vertical installation

Multi-touch gesture control

16:9 display formats from 12" to 21"

Parallel or serial display topologies

Robust due to non-reflecting and chemically hardened front glass

Specifications

Screen size	15" display / 16:9
Width [mm]	420
Height [mm]	269
Depth [mm]	65
Orientation	Horizontal
International protection code	IP65
Supply voltage	24 V DC
Type of interface	2 x USB 2.0
Display resolution	1366 x 768 Pixel
Interface (Display)	CDI+ daisy chain TX modul
Ambient temperature (storage and transport) [°C]	-20-60
Ambient temperature (during operation) [°C]	0-55
Weight [kg]	6.5
