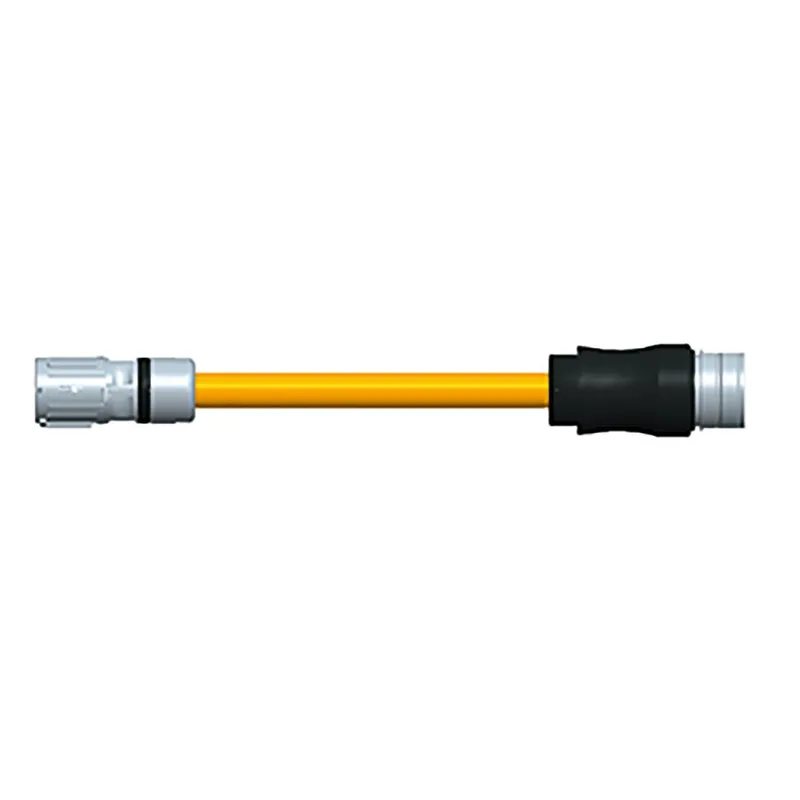

Bosch Rexroth R911373025 – ENCODER CABLE RKG0071/000,5 (RGS1711-REG0011-*******)
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | RKG Encoder Cables |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R911373025 be shipped?
R911373025 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R911373025 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R911373025 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R911373025, subject to availability and destination.
Connection cable RKG 0071 for IMS systems on 17-pin M23 signal connectors.
Suitable for connection to SIEMENS sensor modules SME25/125.
Connection cable, e.g. for Siemens SME25/125 (M17 -> M23, 17-pole, pins)
Specifications
Specifications
| Cable Variant | Encoder Cable |
| Cable Type | ready-made |
| Cable Model | Basic |
| Connector 1 | Plug connector RGS1711 |
| Connector 2 | Does not apply (not known) |
| cable length [m] | 0.5 |
| Mass m (kg/m) [kg/m] | 0.027 |
| Bending radius for fixed installation [mm] | 40 |
| Bending radius for flexible installation [mm] | 75 |
| Dynamic bending radius | 7.5xD |
| Static bending radius | 4xD |
| Bending cycles | 5 million |
| Ambient temperature (storage and transport) [°C] | -40-80 |
| Ambient temperature (during operation) [°C] | -40-80 |
| Weight [kg] | 0.37 |
| Cable length [m] | 0.5 |
| Cable type IMS | RKG 0071 |
