Bosch Rexroth R911344625
CABLE SET 7000-88001-6501000
- MPN
- R911344625
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R911344625?
Extensions – assembled on both ends
Specifications
Specifications
| Connection type 1 | Female connector, straight, M8x1, 3-pin |
| Electrical accessories for electromechanical cylinders | Extensions |
| Electrical accessories for linear axes | Extensions |
| Use | Extension cable |
| Connection type 2 | Male connector, straight, M8x1, 3-pin |
| Maximum acceleration rate amax [m/s²] | 30.0 |
| Cable cross-section | 3 x 0.25 mm² |
| Operating voltage (min. … max.) | 10 V DC ... 30 V DC |
| Operating voltage indicator | no |
| Shield | no |
| Dynamic bending radius | ≥ 10xD |
| Static bending radius | ≥ 5xD |
| Bending cycles | > 10 million |
| Weight [kg] | 0.25 |
| Function indicator | no |
| Cable diameter D [mm] | 4.1 |
| Cable diameter D tolerance [mm] | ±0.2 |
| Cable color | Black |
| Cable material | PUR |
| Compatible | EMC, CKK, CKR, MKK, MKR, MLR, OBB, AGK, VKK, TKL, PSK |
| Max. permissible travel speed | 3.3 m/s for 5 m travel range (typ.), up to 5 m/s for 0.9 m travel range |
| Suitable for drag chains | Yes |
| Protection class | IP68 |
| Weld spark-resistant | no |
| Torsion-resistant | no |
| Ambient temperature fixed extension | -40 °C ... +85 °C |
| Ambient temperature flexible extension | -25 °C ... +85 °C |

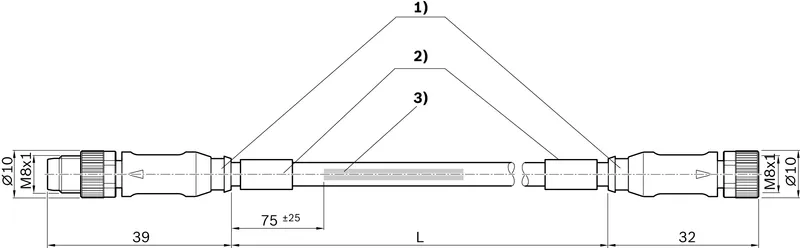

| Dimension L [mm] | 10000 |
R911344625: frequently asked questions
When can R911344625 be shipped?
R911344625 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R911344625 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R911344625 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R911344625, subject to availability and destination.
