Bosch Rexroth R911340506

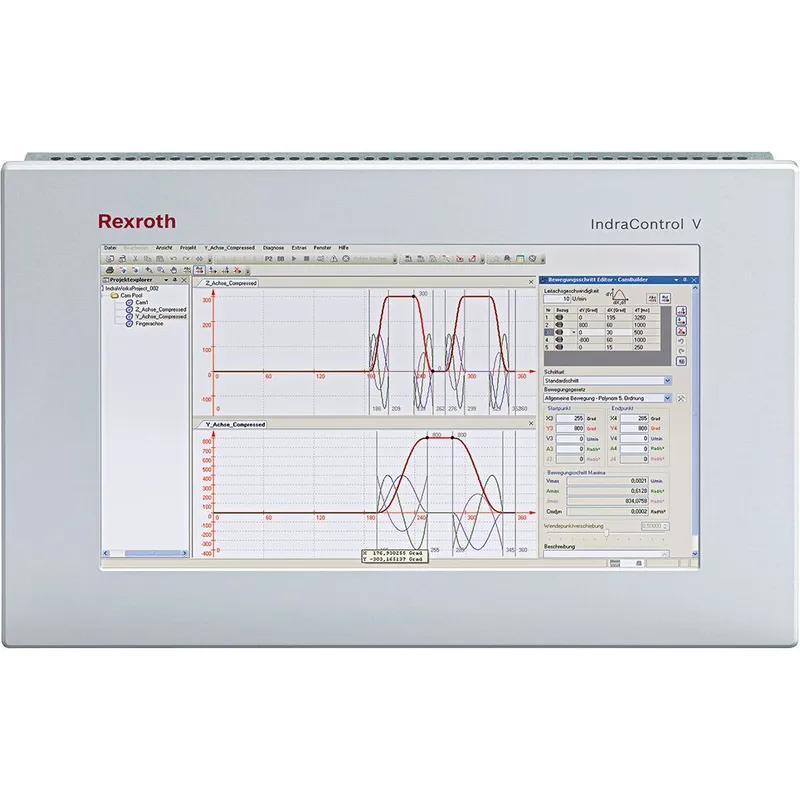

CONTROL PANEL VR2109.01-00-01-N2-NNN-CA
- MPN
- R911340506
- Category
- IndraControl VR21 Entry Level
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R911340506?
The Panel PC product line combines the features of the Box PC and remote displays and terminals into a compact PC solution. The extremely versatile display format scalability, in addition to a wide range of expansion options and standard interfaces make the Panel PC the ideal platform solution for all HMI-based applications.
Completely maintenance-free
Widescreen TFT display: 4.3"/7"/9"
Touchscreen: resistive and/or capacitive
Multi-touch gesture control
Horizontal and vertical assembly
Operating system: Windows 10 IoT Enterprise
Upgrade options via extension slots
Specifications
Specifications
| Screen size | 9" display / 16:9 |
| Processor | ARM Cortex™-A8 800 MHz |
| Width [mm] | 263 |
| Height [mm] | 178 |
| Depth [mm] | 52.3 |
| International protection code | Front IP65/ back IP20 |
| Mass memory | Flash 256 MB |
| RAM | 512 MB |
| Type of interface | 2 x USB 2.0 |
| Mechanical strength | 1 g |
| Display resolution | 800 x 480 Pixel |
| Permissible air humidity (storage) [%] | 20-75 |
| Permissible air humidity (transport) [%] | 20-85 |
| Ambient temperature (storage and transport) [°C] | -25-70 |
| Ambient temperature (during operation) [°C] | 0-50 |
| Weight [kg] | 2.33 |
R911340506: frequently asked questions
When can R911340506 be shipped?
R911340506 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R911340506 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R911340506 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R911340506, subject to availability and destination.
