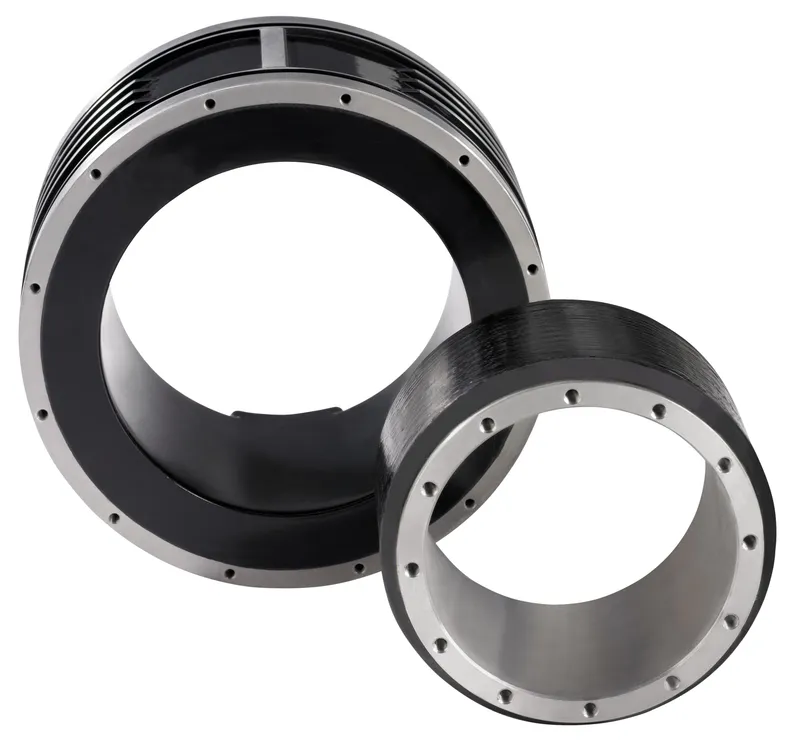

STATOR MST530C-0010-FH-N0KR-NNNN
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | MBT Synchronous Torque Motors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R911321272 be shipped?
R911321272 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R911321272 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R911321272 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R911321272, subject to availability and destination.
The Rexroth servo motors product range combines high dynamics with compact dimensions and best energy efficiency. Rotors with low and medium inertia are available with optimum mass customization. For intelligent solutions in the Industry 4.0 environment, the motors serve as data sources. Special explosion proof versions according to ATEX round out the portfolio.
Specifications
Specifications
| Maximum torque [Nm] | 2700.0 |
| Maximum speed [rpm] | 140.0 |
| Rated speed [min⁻¹] | 100 |
| Rated power [kW] | 12.6 |
| Cooling type | Water cooling |
| Rated torque [Nm] | 1200.0 |
| Maximum current [A] | 88 |
| Outside cooling jacket diameter [mm] | 565 |
| Cooling jacket length [mm] | 150 |
| International protection code | IP00 |
| Encapsulation | Integrated aluminum cooling jacket (incl. housing and flange) |
| electrical connection | Terminal box with cable outlet at the right side |
| Rated current [A] | 31.2 |
| Weight [kg] | 86 |
