Bosch Rexroth R911315963

SERVOMOTOR MAD130C-0200-SA-C0-AP0-05-N1

MPN
R911315963
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R911315963?

The high power density predestines the MAD motor series for applications in machine tools and printing machines as well as in metal forming. Fine-resolution encoder systems in single-turn or multi-turn design as well as outstanding radial runout ensure maximum machining precision. In addition to options such as keyway and holding brake, these motors are also available with special bearings for high-speed applications or for applications with increased radial loads. The motor degree of protection IP65 includes the blower motor and thus enables use even in rough industrial environments. The service-friendly motor design even allows easy fan replacement while the motor is running – particularly interesting in the printing industry.

Specifications

Specifications

Maximum torque [Nm]252.9
Maximum speed [rpm]7500.0
Rated speed [min⁻¹]2000
Flange size [mm]262
Rated power [kW]23.0
Cooling typeAxial fan, blowing
Motor typewithout holding brake
Rated torque [Nm]110.0
Maximum current [A]106.7
Shaft length [mm]110
Shaft diameter [mm]42
Spigot [mm]250
Bolt circle [mm]300
Rotor inertia (without brake) value [kg/m²]0.108
Encoder designIncremental encoder, 2048 increments
electrical connectionConnector A-side
Weight [kg]124

R911315963: frequently asked questions

When can R911315963 be shipped?

R911315963 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R911315963 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R911315963 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R911315963, subject to availability and destination.

More Bosch Rexroth parts

Bosch Rexroth R911315802 – SERVOMOTOR MAD130B-0150-SA-M2-BQ1-05-V1
Bosch Rexroth
R911315802

SERVOMOTOR MAD130B-0150-SA-M2-BQ1-05-V1

Bosch Rexroth R911315847 – SERVOMOTOR MAD160C-0200-SA-S2-BQ0-35-V1
Bosch Rexroth
R911315847

SERVOMOTOR MAD160C-0200-SA-S2-BQ0-35-V1

Bosch Rexroth R911315876 – SERVOMOTOR MAD130B-0200-SA-M2-BQ0-35-V1
Bosch Rexroth
R911315876

SERVOMOTOR MAD130B-0200-SA-M2-BQ0-35-V1

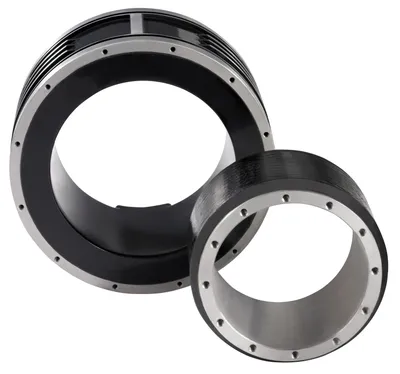

Bosch Rexroth R911315961 – STATOR MST210A-0027-FT-N0RN-NNNN
