Bosch Rexroth R911283409

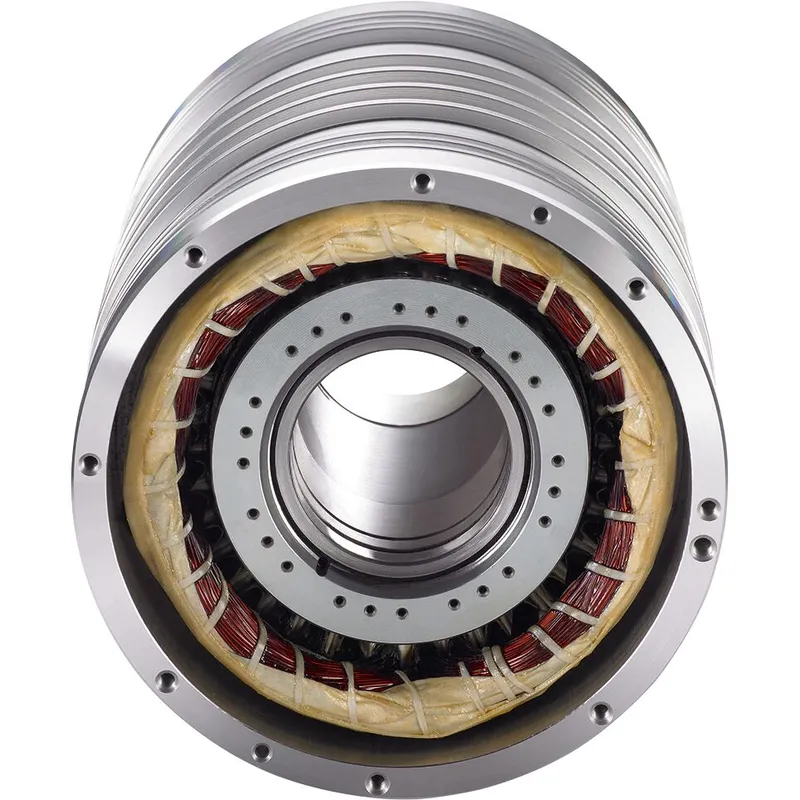

STATOR 1MS160N-4A-A2/S010

MPN: R911283409
Category: 1MB Asynchronous spindle motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R911283409?

The Rexroth servo motors product range combines high dynamics with compact dimensions and best energy efficiency. Rotors with low and medium inertia are available with optimum mass customization. For intelligent solutions in the Industry 4.0 environment, the motors serve as data sources. Special explosion proof versions according to ATEX round out the portfolio.

Specifications

Maximum speed [rpm]	12000.0
Rated speed [min⁻¹]	3000
Rated power [kW]	28.0
Cooling type	Water cooling
Rated torque [Nm]	89.0
Maximum current [A]	170.83
Outside cooling jacket diameter [mm]	180
Cooling jacket length [mm]	385
International protection code	IP00
Encapsulation	Open aluminum cooling jacket
electrical connection	Line 1.5 m, led out on stator side with smaller outer diameter
Rated current [A]	75
Weight [kg]	28.1
