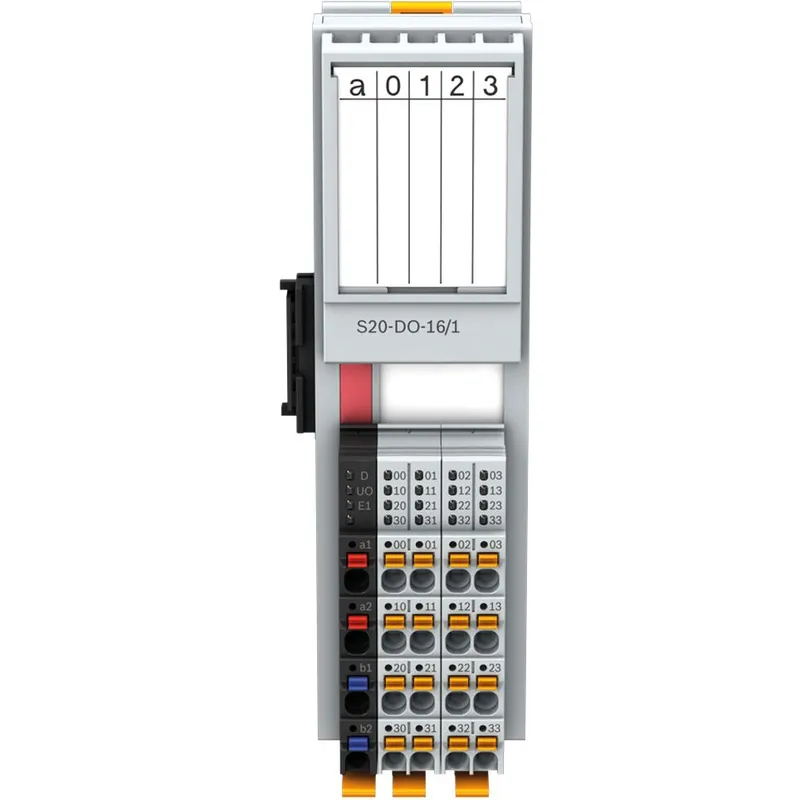

DIGITAL OUTPUT MODULE S20-DO-16/1
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Digital Output Modules |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R911172542 be shipped?
R911172542 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R911172542 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R911172542 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R911172542, subject to availability and destination.
S20 in protection type IP20 is the flexibly scalable I/O system for shortest cycle times and highest precision and provides a real-time data flow between control and peripherals - whether locally at the XM control or as decentralized I/O station.
Compact, modular and simple
Space-saving I/O technology for top hat rail mounting
Individually combinable modules
Innovative assembly and installation concept
Specifications
Specifications
| Connection type | Push-in |
| Connectivity technology | 1-wire technique |
| Number of channels | 16 |
| Max. output current per channel [A] | 0.5 |
| Width [mm] | 35 |
| Height [mm] | 54 |
| Depth [mm] | 126.1 |
| International protection code | IP20 |
| Nominal output voltage [V DC] | 24 |
| Logic voltage UBus [V DC] | 5 |
| Conductor cross-section | AWG: 24 ... 16; Flexible: 0.2-1.5 mm²; rigid: 0.2-1.5 mm² |
| Permissible air humidity (storage) [%] | 5-95 |
| Permissible air humidity (transport) [%] | 5-95 |
| Ambient temperature (storage and transport) [°C] | -40-85 |
| Ambient temperature (during operation) [°C] | -25-60 |
| Air pressure (operation) | 70-106 kPa (up to 3,000 m above sea level) |
| Air pressure (storage / transport) | 70-106 kPa (up to 3,000 m above sea level) |
| Weight [kg] | 0.18 |
