Home / Bosch Rexroth / R-IB IL Analog Inputs / Bosch Rexroth R911170425

Bosch Rexroth R911170425

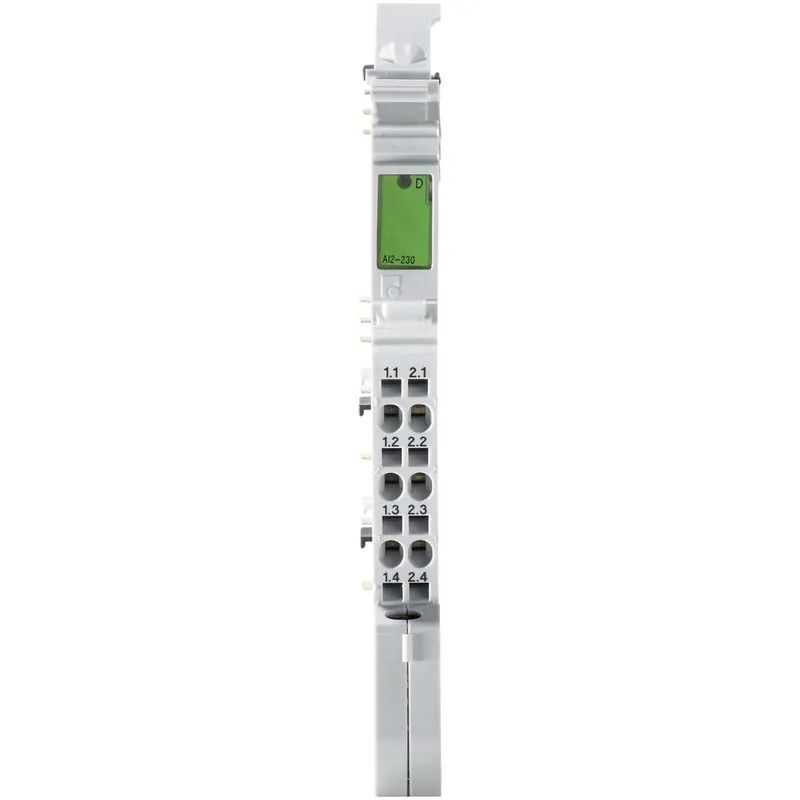

INTERFACE MODULE R-IB IL AI 2/SF-230-PAC

MPN: R911170425
Category: R-IB IL Analog Inputs

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R911170425?

The modular, compact equipment configuration of the I/O systems from Rexroth offers you maximum flexibility for the cost-effective implementation of your individual machine concepts. The I/O modules have robust design and mechanics, are easy to use, have a quick reaction time and are quick to install – both in the control cabinet and in the field. Open communication standards allow you perfect integration of the I/O modules with maximum availability.

Specifications

Connection type	Tension spring connection
Connectivity technology	2-wire, 3-wire technique
Number of channels	2
Width [mm]	12.2
Height [mm]	136.8
Depth [mm]	71.5
International protection code	IP20
Resolution A/D	16 Bit
A/D conversion time	120 µs
Conductor cross-section	AWG: 24 ... 16; Flexible: 0.2-1.5 mm²; rigid: 0.2-1.5 mm²
Permissible air humidity (storage) [%]	10-95
Permissible air humidity (transport) [%]	10-95
Ambient temperature (storage and transport) [°C]	-25-85
Ambient temperature (during operation) [°C]	-25-55
Air pressure (operation)	70-106 kPa (up to 3,000 m above sea level)
Air pressure (storage / transport)	70-106 kPa (up to 3,000 m above sea level)
Weight [kg]	0.1

R911170425: frequently asked questions

When can R911170425 be shipped?

R911170425 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R911170425 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R911170425 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R911170425, subject to availability and destination.
