Bosch Rexroth R910991846

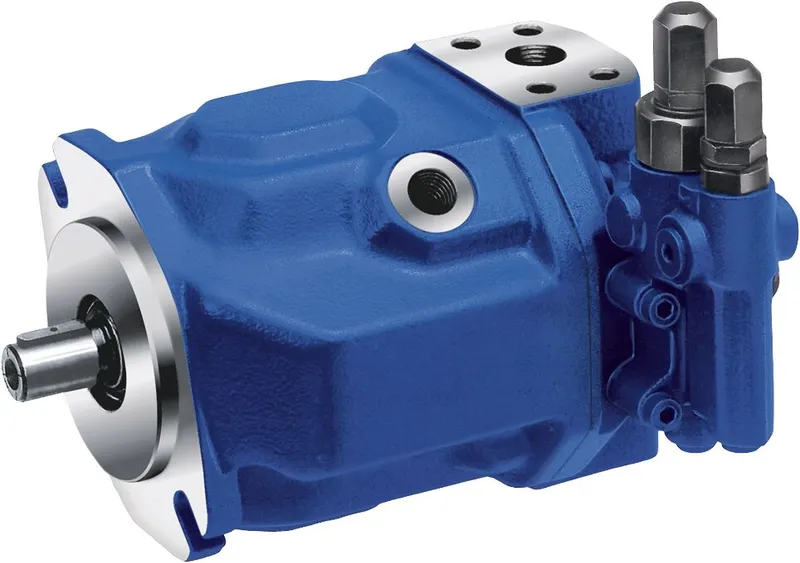

AXIAL-PISTON PUMP A A10VSO 18 DFR1/31R-VPA12N00

MPN: R910991846
Category: Axial piston variable pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R910991846?

The A10VSO is a variable pump with axial piston rotary group in swashplate design for hydrostatic drives in open circuits. The flow is proportional to the drive speed and the displacement. The flow can be continuously changed with closed loop control.

Low operating noise

Long service life

Controls with short response times

Excellent suction characteristics

2 drain ports

Specifications

Version_1	Standard
Version_2	Standard
Product family	A10VSO
Type of actuation	Variable pump, open circuit
Size (displacement) [cm³]	18
Control device	DR F controller X-T open 32/53
Series	Series 3, index 1
Direction of rotation	clockwise (w.view on shaft end)
Sealing material	FKM (standard)
Shaft end	ISO shaft key
Mounting flange	ISO 3019-2 (metric), 2 hole
Working ports	B flan l metr, S flan l metr
Through drive	Without through drive
Connector for solenoids	Without
Rotational speed [rpm]	1500.0
Working pressure [bar]	280.0
Max. displacement [cm³]	18.0
Max. displacement setting	Variabel
Min. displacement [cm³]	0.0
Min. displacement setting	Fix
Max. flow [l/min]	27.0
Min. flow [l/min]	0.0
Internal drain line	No
Pressure differential FR [bar]	14.0
Classification society (external)	No
Test certificate	Without
Test certificate language code	Without
Paint/base coat	without
Paint/top coat	without
Weight [kg]	12.9
