AXIAL-PISTON PUMP A A10VSO100 DFLR/31R-VPA12N00 *GOEU
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Axial piston variable pumps |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R902566707 be shipped?
R902566707 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R902566707 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R902566707 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R902566707, subject to availability and destination.

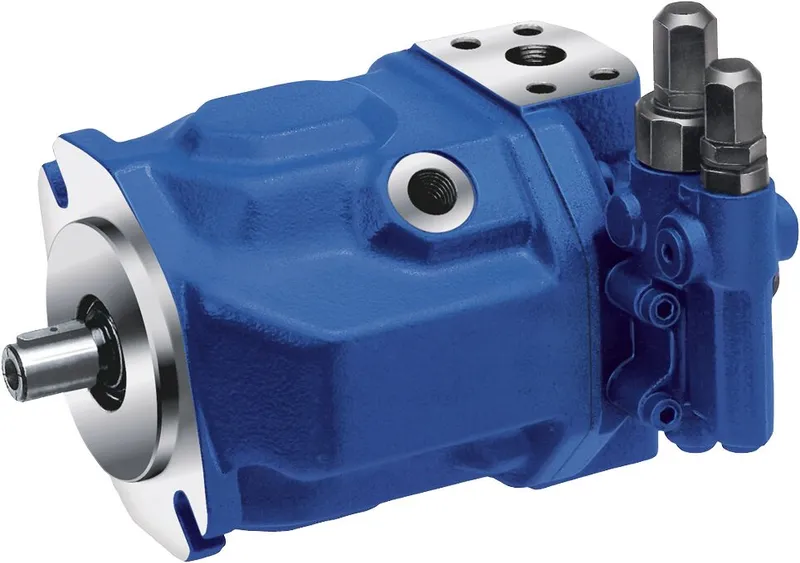

The A10VSO is a variable pump with axial piston rotary group in swashplate design for hydrostatic drives in open circuits. The flow is proportional to the drive speed and the displacement. The flow can be continuously changed with closed loop control.
Low operating noise
Long service life
Controls with short response times
Excellent suction characteristics
2 drain ports
Specifications
Specifications
| Version_1 | Standard |
| Version_2 | Standard |
| Product family | A10VSO |
| Type of actuation | Variable pump, open circuit |
| Size (displacement) [cm³] | 100 |
| Control device | Power controller, DRS |
| Series | Series 3, index 1 |
| Direction of rotation | clockwise (w.view on shaft end) |
| Sealing material | FKM (standard) |
| Shaft end | ISO shaft key |
| Mounting flange | ISO 3019-2 (metric), 2 hole |
| Working ports | B flan l metr, S flan l metr |
| Through drive | Without through drive |
| Connector for solenoids | Without |
| Rotational speed [rpm] | 1500.0 |
| Working pressure [bar] | 250.0 |
| Max. displacement [cm³] | 100.0 |
| Max. displacement setting | Variabel |
| Min. displacement [cm³] | 0.0 |
| Min. displacement setting | Variabel |
| Max. flow [l/min] | 150.0 |
| Min. flow [l/min] | 0.0 |
| Internal drain line | No |
| Pressure differential FR [bar] | 14.0 |
| Drive power [kW] | 22.0 |
| Drive torque [Nm] | 140.1 |
| Classification society (external) | No |
| Test certificate | Without |
| Test certificate language code | Without |
| Paint/base coat | without |
| Paint/top coat | without |
| ATEX type of protection | without |
| Weight [kg] | 49 |
