Bosch Rexroth R902230070

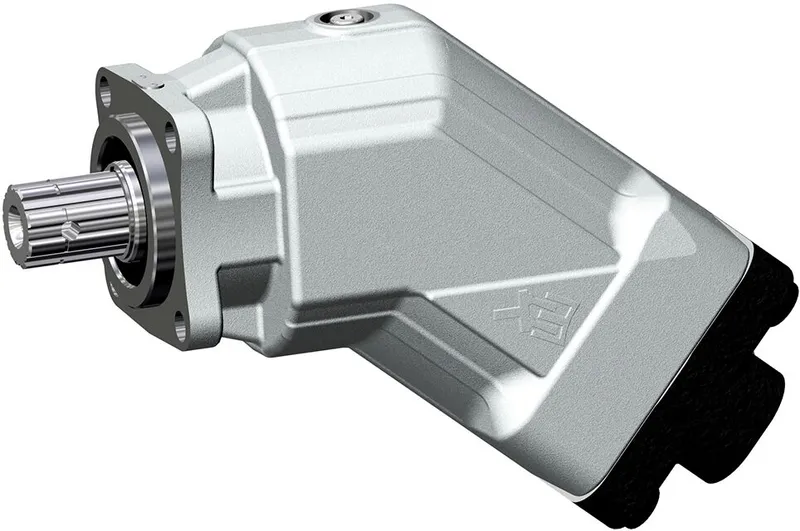

AXIAL-PISTON PUMP A17FNO125

MPN: R902230070
Category: Axial piston fixed pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R902230070?

A17FNO is a fixed pump with an axial tapered piston rotary group in bent-axis design for hydrostatic drives in open circuits. The pump has been especially designed for use in commercial vehicles, e.g. street tippers, dump trucks, HGV loading cranes, tankers, municipal vehicles. The flow is proportional to the drive speed and the displacement.

Flange and shaft designed for direct mounting on the power take-off of commercial vehicles

Optimized weight by cast aluminum housing

No drain line required

Low operating noise

Simple adjustment of rotatonal direction

Excellent suction characteristics

High total efficiency

Long service life

Specifications

Product family	A17FO
Type of actuation	Pump, open circuit
Size (displacement) [cm³]	125
Series	10
Port and fastening threads	metric
Direction of rotation	counter-clockwise
Sealing material	FKM (fluorocarbon rubber) 2 WDR
Shaft end	Splined shaft similar to DIN ISO 14
Mounting flange	ISO 7653-1985
Port plate for service lines	Threaded port A and S rear
Additional functions	without
Max. operating pressure [bar]	250.0
Max. flow [l/min]	218.0
Max. rotational speed [rpm]	1800
Suction adapter	without
Port A	DIN ISO 228 - G 1 open
Suction port S	DIN ISO 228 - G 1 1/4 open
Port R	DIN 3852 M10x1 plugged
Classification society (external)	Standard without acceptance
Test certificate	without
Test certificate language code	Without
Paint/base coat	without
Paint/top coat	without
Weight [kg]	14.71
