Bosch Rexroth R902230048

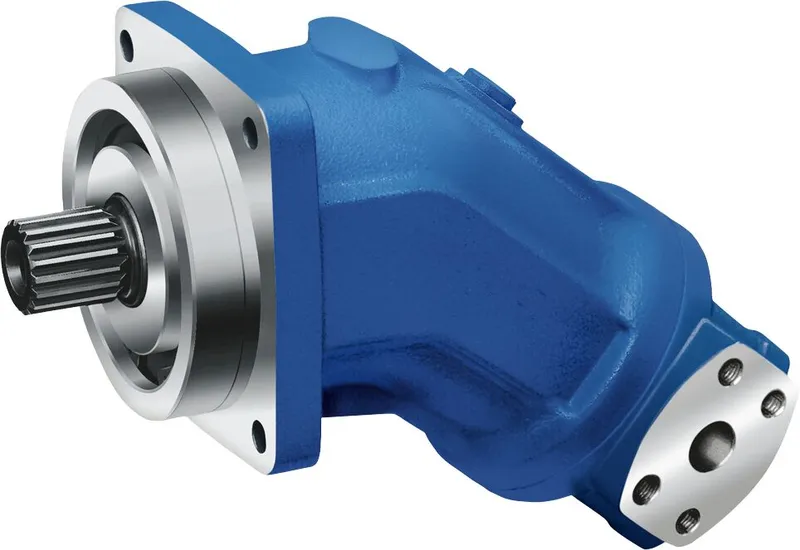

AXIAL-PISTON PUMP A2FO12/61R-VAB06 *GO2EU*
- MPN
- R902230048
- Category
- Axial piston fixed pumps
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R902230048?
The A2FO is a fixed pump with an axial tapered piston rotary group in bent-axis design for hydrostatic drives in open circuits. The flow is proportional to the drive speed and the displacement.
Robust pump with long service life
Very high total efficiency
High power density
Large variety of available nominal sizes allows exact adjustment to the application
Specifications
Specifications
| Product family | A2FO |
| Size (displacement) [cm³] | 12 |
| Series | 61 |
| Direction of rotation | clockwise |
| Sealing material | FKM |
| Low temperature version | no |
| Shaft end | A (splined shaft DIN 5480) |
| Mounting flange | 4-hole ISO 3019-2 |
| Working ports | 06 (S rear;B(A) lat. metr) |
| Rotary group, hydraulic part | Standard |
| Drive shaft bearing | Standard bearing |
| Shaft seal ring | Standard WDR |
| Housing ports | Air bleed port R |
| Housing ports, status | Air bleed port R plugged |
| Port plate | B - Standard |
| Classification society (external) | Standard (without acceptance) |
| Test certificate | without |
| Test certificate language code | Without |
| Paint/base coat | RAL 9005 deep black |
| Paint/top coat | without |
| Weight [kg] | 6 |
R902230048: frequently asked questions
When can R902230048 be shipped?
R902230048 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R902230048 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R902230048 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R902230048, subject to availability and destination.
