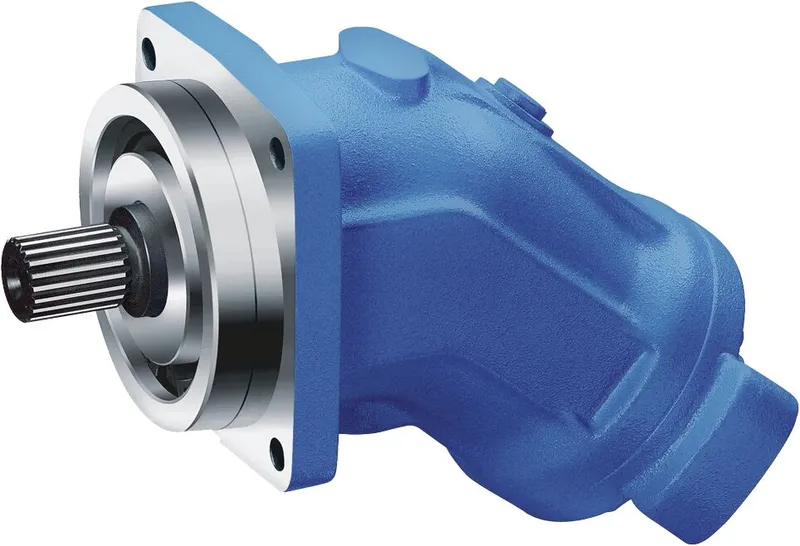

Bosch Rexroth R902230027

AXIAL-PISTON MOTOR A2FM32/61W-VAB010 *GO2EU*

MPN
R902230027
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R902230027?

The A2FM is a fixed motor with an axial tapered piston rotary group with a bent-axis design for hydrostatic drives in open and closed circuits. In axial piston units with a bent-axis design, the pistons are arranged at an angle to the drive shaft. The pistons rest directly on the drive shaft where they generate torque depending on the pressure.

High power density

Very high total efficiency

High starting efficiency

Robust 40° bent-axis technology

Specifications

Specifications

Product familyA2FM
Type of actuationMotor
Size (displacement) [cm³]32
Series61
Direction of rotationalternating
Sealing materialFKM
Low temperature versionno
Shaft endA (splined shaft DIN 5480)
Mounting flange4-hole ISO 3019-2
Working ports01 (port A, B;SAE rear)
Speed sensingwithout
Pressure relief valvewithout
Rotary group, hydraulic partStandard
Drive shaft bearingStandard bearing
Shaft seal ringStandard WDR
Housing portsLeakage oil port T1
Housing ports, statusLeakage oil port T1 plugged
Installation version of port plateInstallation version 1 (standard)
Fixing screwsStandard
Port plateA-Standard
Max. flow [l/min]0.0
Classification society (external)Standard (without acceptance)
Test certificatewithout
Test certificate language codeWithout
Paint/base coatRAL 9005 deep black
Paint/top coatwithout
Weight [kg]11.4

R902230027: frequently asked questions

When can R902230027 be shipped?

R902230027 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R902230027 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R902230027 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R902230027, subject to availability and destination.
