Bosch Rexroth R902228081

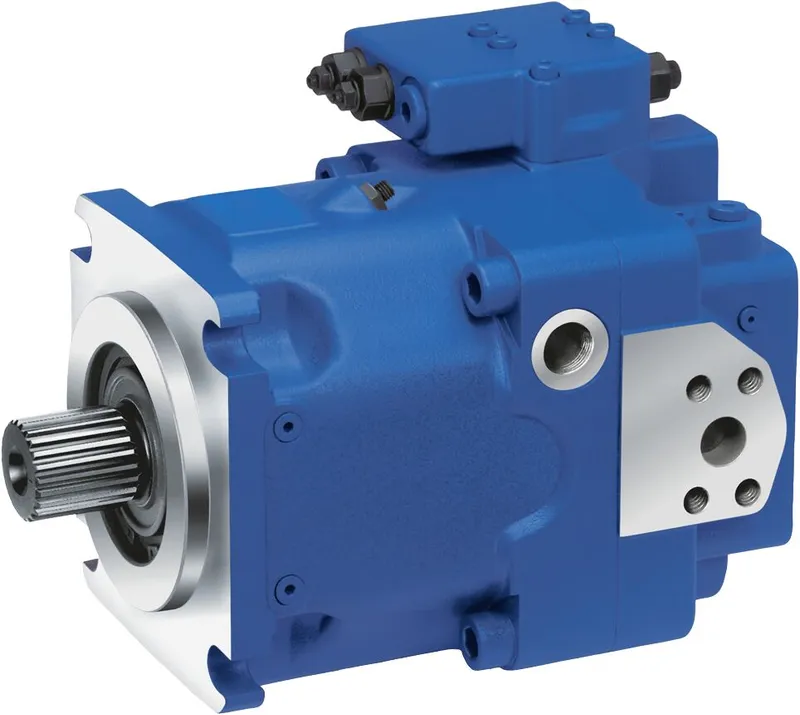

AXIAL-PISTON PUMP A11VO95DRS/10R-NSD12N00 *GO2EU*
- MPN
- R902228081
- Category
- Axial piston variable pumps
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R902228081?
The A11VO is a variable pump with axial piston rotary group in swashplate design for hydrostatic drives in open circuits. The flow is proportional to the drive speed and the displacement. The flow can be continuously changed with closed loop control.
Specifications
Specifications
| Product family | A11VO |
| Charge pump (impeller) | Without charge pump |
| Type of actuation | Variable pump, open circuit |
| Size (displacement) [cm³] | 93.5 |
| Control device | Pressure controller (9.6/9.9) |
| Parallel operation | without parallel operation |
| Pressure cut-off | Without pressure cut-off |
| Cross sensing | Without cross sensing |
| Load-sensing | Load sensing |
| Mechanical stroke limiter | without stroke limiter |
| Series | Series 10 (NG 40 - 130) |
| Direction of rotation | Clockwise |
| Sealing material | NBR, WDR in FKM |
| Shaft end | Splined shaft ANSI B92.1a-1976 E-P |
| Mounting flange | SAE J744 - 4 hole |
| Working ports | SAE lateral opposite thr. metr. |
| Through drive | Without through drive |
| Connector for solenoids | Without connector |
| Swivel angle indicator | Without swivel angle indicator |
| Speed sensing | Without rotational speed indicator |
| Working pressure [bar] | 350.0 |
| Max. flow [l/min] | 216.0 |
| Min. flow [l/min] | 0.0 |
| Max. rotational speed (load) [rpm] | 2350 |
| Maximum pressure [bar] | 350 |
| Max. flow (limited) | No |
| Pressure at max. flow [bar] | 50 |
| S differential pressure [bar] | 18.0 |
| Reset nozzle | 1.4 |
| Port T1 | Open |
| Port T2 | Plugged |
| Port R | Plugged |
| Port G | Plugged |
| Port M | Plugged |
| Port M1 | Plugged |
| Port M2 | without |
| Port X | Open |
| Port X1 | Without |
| Port X2 | Without |
| Port Z | Without |
| Port U (special) | Without |
| Classification society (external) | Standard (without acceptance) |
| Test certificate | Without |
| Test certificate language code | Without |
| Paint/base coat | RAL 9005 deep black |
| Paint/top coat | Without |
| Weight [kg] | 54.34 |
