Bosch Rexroth R902228076

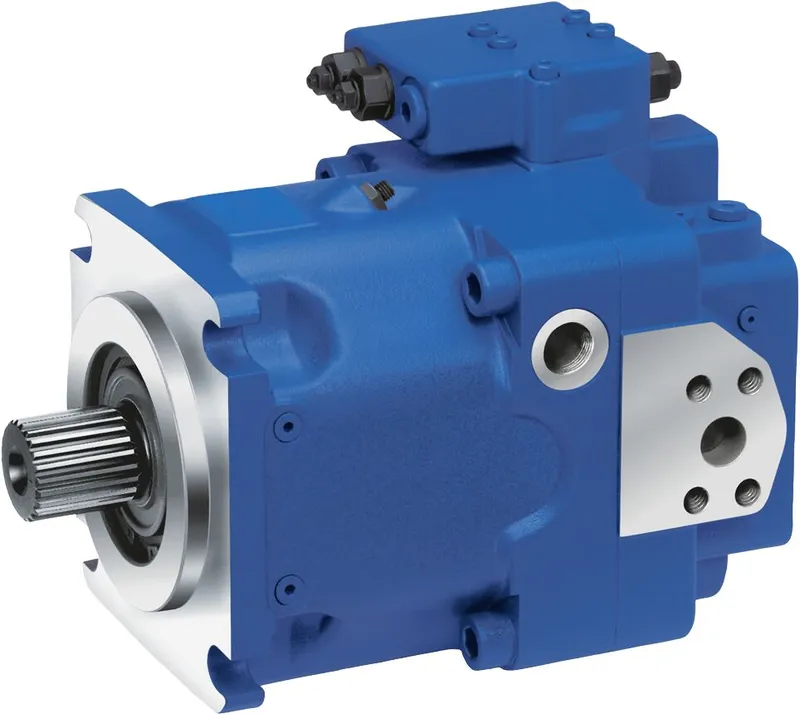

AXIAL-PISTON PUMP A11VO60DRS/10L-NSC12N00 *GO2EU*

MPN: R902228076
Category: Axial piston variable pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R902228076?

The A11VO is a variable pump with axial piston rotary group in swashplate design for hydrostatic drives in open circuits. The flow is proportional to the drive speed and the displacement. The flow can be continuously changed with closed loop control.

Specifications

Product family	A11VO
Charge pump (impeller)	Without charge pump
Type of actuation	Variable pump, open circuit
Size (displacement) [cm³]	58.5
Control device	Pressure controller (9.6/9.9)
Parallel operation	without parallel operation
Pressure cut-off	Without pressure cut-off
Cross sensing	Without cross sensing
Load-sensing	Load sensing
Mechanical stroke limiter	without stroke limiter
Series	Series 10 (NG 40 - 130)
Direction of rotation	Counter-clockwise
Sealing material	NBR, WDR in FKM
Shaft end	Splined shaft ANSI B92.1a-1976 E-P
Mounting flange	SAE J744 - 2 hole
Working ports	SAE lateral opposite thr. metr.
Through drive	Without through drive
Connector for solenoids	Without connector
Swivel angle indicator	Without swivel angle indicator
Speed sensing	Without rotational speed indicator
Working pressure [bar]	350.0
Max. flow [l/min]	158.0
Min. flow [l/min]	0.0
Max. rotational speed (load) [rpm]	2700
Maximum pressure [bar]	350
Max. flow (limited)	No
Pressure at max. flow [bar]	50
S differential pressure [bar]	18.0
Reset nozzle	1.2
Port T1	Open
Port T2	Plugged
Port R	Plugged
Port G	Plugged
Port M	Plugged
Port M1	Plugged
Port M2	without
Port X	Open
Port X1	Without
Port X2	Without
Port Z	Without
Port U (special)	Without
Classification society (external)	Standard (without acceptance)
Test certificate	Without
Test certificate language code	Without
Paint/base coat	RAL 9005 deep black
Paint/top coat	Without
Weight [kg]	40

R902228076: frequently asked questions

When can R902228076 be shipped?

R902228076 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R902228076 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R902228076 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R902228076, subject to availability and destination.
