Bosch Rexroth R902191759

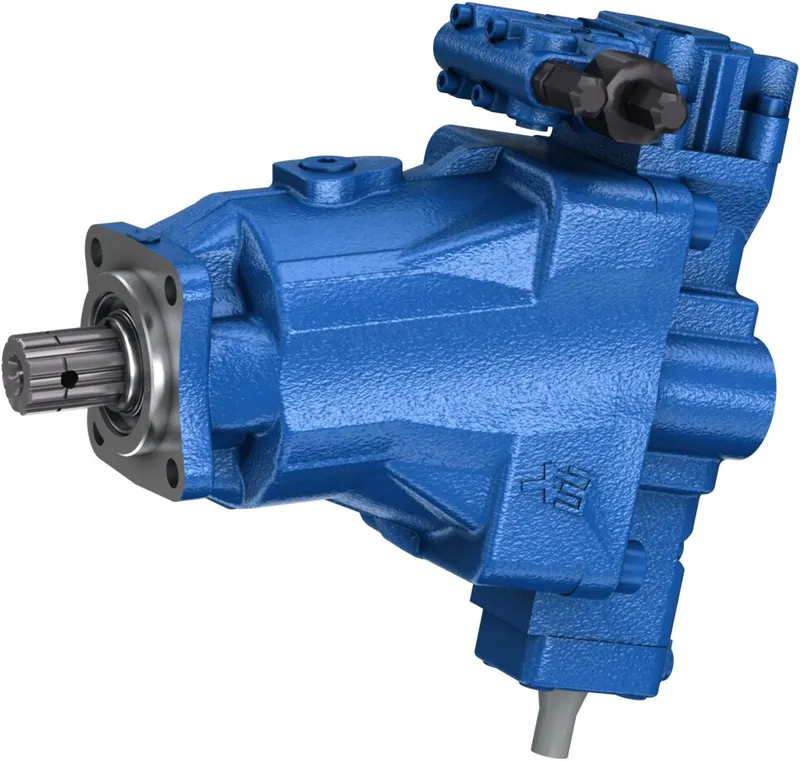

AXIAL-PISTON PUMP A18VO107DRS00/11NLWK0E810-0 77725.3116

MPN: R902191759
Category: Axial piston variable pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R902191759?

A18VO is a variable displacement pump with an axial tapered piston rotary group in bent-axis design for hydrostatic drives in open circuits. The pump has been especially designed for demanding applications and comfortable control in working equipment in commercial vehicles, e.g. large HGV loading cranes and superstructures. The flow is proportional to the drive speed and the displacement. By adjusting the bent axis, the flow can be continuously changed.

Flange and shaft designed for direct mounting on the power take-off of commercial vehicles

Optimized weight by cast aluminum housing

High total efficiency

Low operating noise

Excellent suction characteristics

Long service life

Specifications

Product family	A18V
Type of actuation	Pump, open circuit
Size (displacement) [cm³]	107
Series	11
Port and fastening threads	metric
Direction of rotation	counter-clockwise
Sealing material	FKM (fluorocarbon rubber) 2 WDR
Shaft end	Splined shaft similar to DIN ISO 14
Mounting flange	Special flange ISO 7653-1985
Connector for solenoids	without connector
Port plate for service lines	Threaded port A and S rear
Additional functions	without additional functions, standard
Max. operating pressure [bar]	350.0
Max. displacement [cm³]	107.0
Min. displacement [cm³]	0.0
Max. flow [l/min]	223.0
Min. flow [l/min]	0.0
Max. rotational speed [rpm]	2150
Pressure controller setting [bar]	350
Load-sensing setting [bar]	30
Suction adapter	without
Adapter	without
Port A	DIN ISO 228 - G 1 open
Suction port S	DIN ISO 228 - G 1 1/4 open
Port R	DIN 3852 M18X1.5 plugged
Port M1	DIN 3852 M12x1.5 plugged
Port X	ISO 11926 7/16-20 UNF-2B open
Port X2	without
Port MA	DIN 3852 M10x1 plugged
Port T	DIN 3852 M12x1.5 open
Classification society (external)	Standard without acceptance
Test certificate	without
Test certificate language code	Without
Paint/base coat	without
Paint/top coat	without
Weight [kg]	27.4
