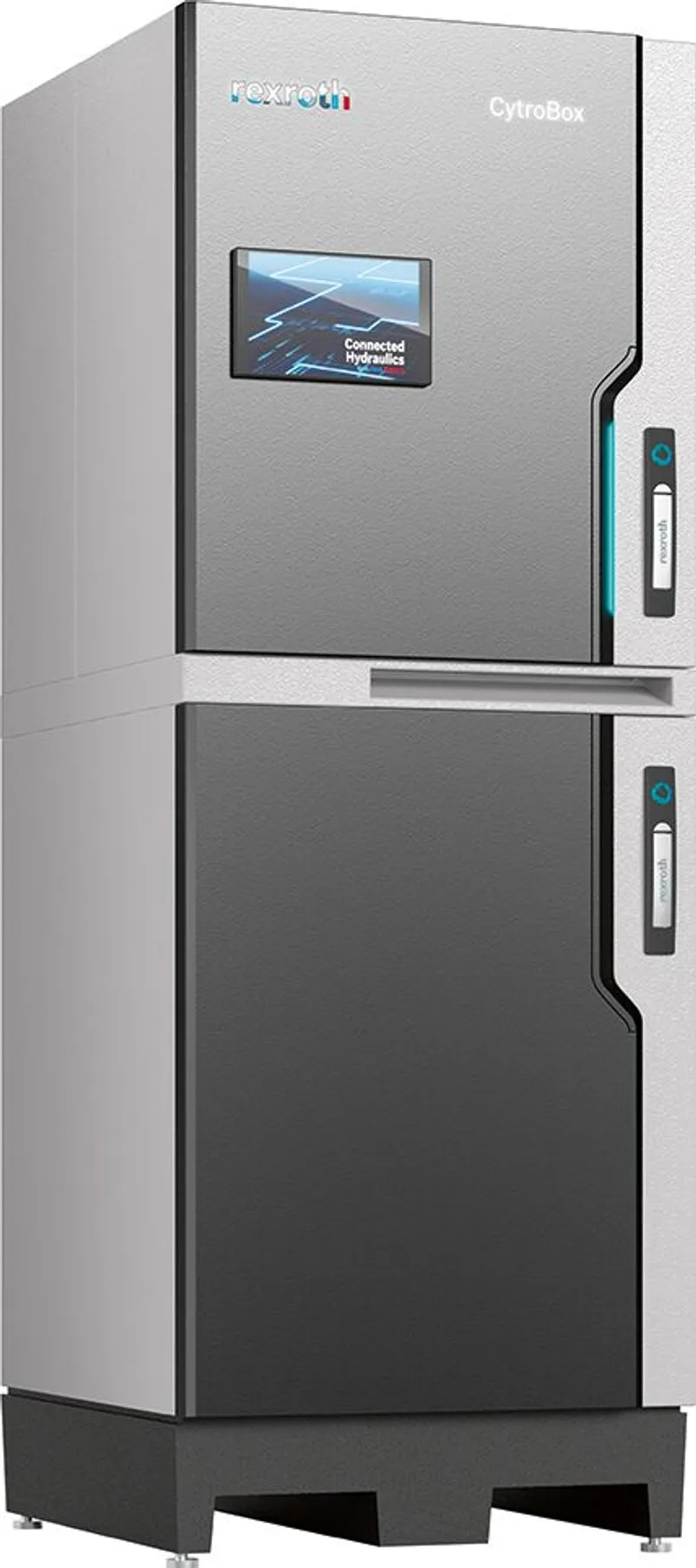

DRIVE UNIT CYTROBOX-N/AAB/CBB/000/BA/AAB

Name: DRIVE UNIT CYTROBOX-N/AAB/CBB/000/BA/AAB
Brand: Bosch Rexroth
SKU: R901600138

MPN: R901600138 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	CytroBox medium-size power units
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R901600138 be shipped?

R901600138 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R901600138 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R901600138 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R901600138, subject to availability and destination.

Compact design with flow-optimized container and integrated control cabinet Energy-efficient variable-speed drive. Reduced noise level thanks to an innovative foundation. Highly interconnected with condition monitoring and online dashboard. Reduced commissioning effort thanks to a step-by-step wizard. Integrated drive controller Power up to 30 kW with identical frame size and interfaces Servo drive Reduced hydraulic fluid volume due to degassing-optimized tank Optional set-up of different control systems Control pressure, oil temperature, oil level, pressure filter contamination, pump leakage, water content (in oil), oxygen content (in oil), dirt particles (in oil)

Specifications

Product family	CytroBox
Operating pressure, max. [bar]	315.0
Max. flow [l/min]	95.0
Oscillating volume [l]	50
Supply voltage	400...500 VAC (-15%/+10%)
Cooling capacity, max. [kW]	10
Tank capacity [l]	150
Performance class [kW]	30
Connectivity	Digital, EtherCAT; Digital, EtherNET/IP; Digital, PROFINET RT; Digital, Sercos III
Conformity	CE
Hydraulic fluid	HLP
Weight [kg]	520
