Bosch Rexroth R901600109

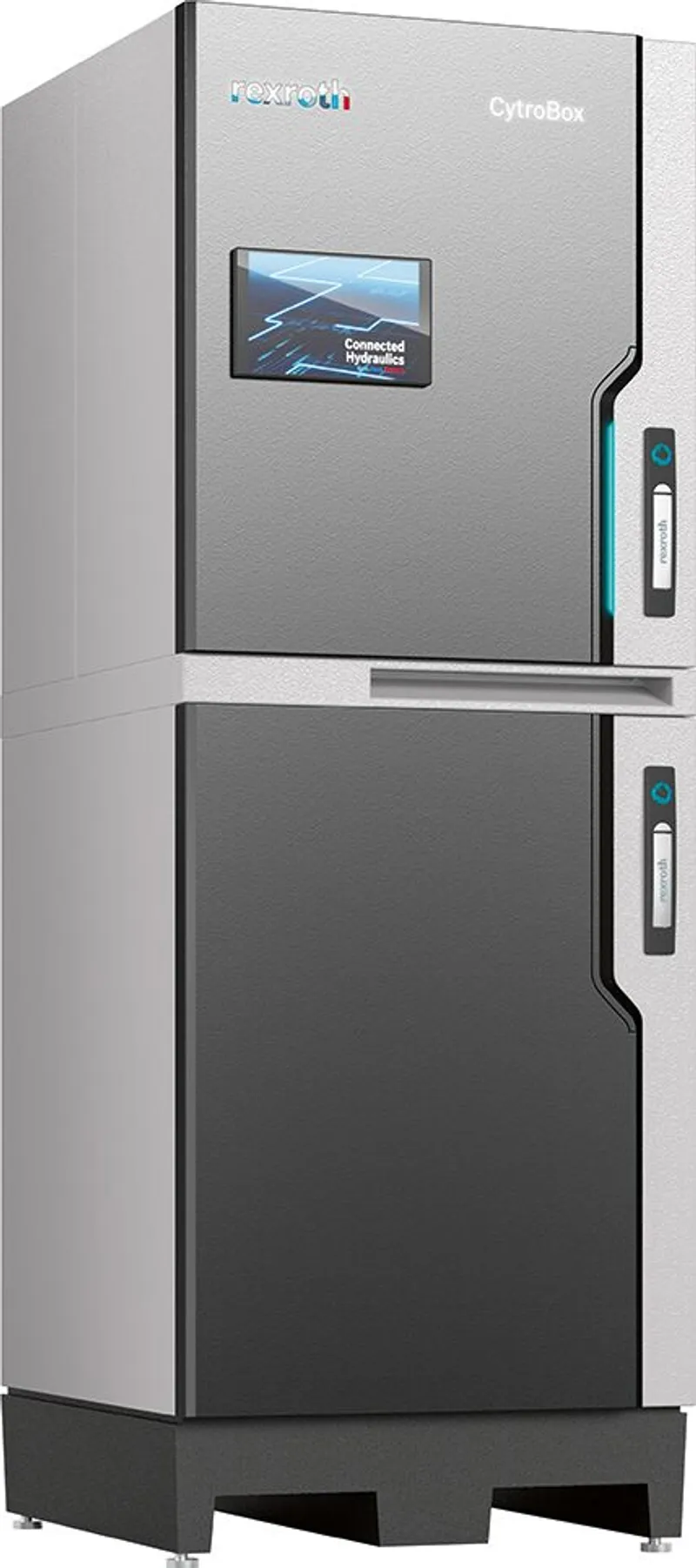

DRIVE UNIT CYTROBOX-N/AAA/CBC/000/BA/AAJ

MPN: R901600109
Category: CytroBox medium-size power units

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R901600109?

Compact design with flow-optimized container and integrated control cabinet, energy-efficient variable-speed drive, highly interconnected with condition monitoring and online dashboard.

Integrated drive controller

Power up to 30 kW with identical frame size and interfaces

Servo drive

Reduced hydraulic fluid volume due to degassing-optimized tank

Optional set-up of different control systems

Control pressure, oil temperature, oil level, pressure filter contamination, pump leakage, dirt particles (in oil)

Specifications

Product family	CytroBox
Operating pressure, max. [bar]	315.0
Max. flow [l/min]	95.0
Oscillating volume [l]	50
Supply voltage	400...500 VAC (-15%/+10%)
Cooling capacity, max. [kW]	10
Tank capacity [l]	150
Performance class [kW]	30
Connectivity	Digital, EtherCAT; Digital, EtherNET/IP; Digital, PROFINET RT; Digital, Sercos III
Conformity	CE
Hydraulic fluid	HLP
Weight [kg]	520
