WORKSTATION TS-HX300-1X/G2A03B2C2M2S1L1
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Hydraulix 300 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R901595045 be shipped?
R901595045 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R901595045 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R901595045 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R901595045, subject to availability and destination.

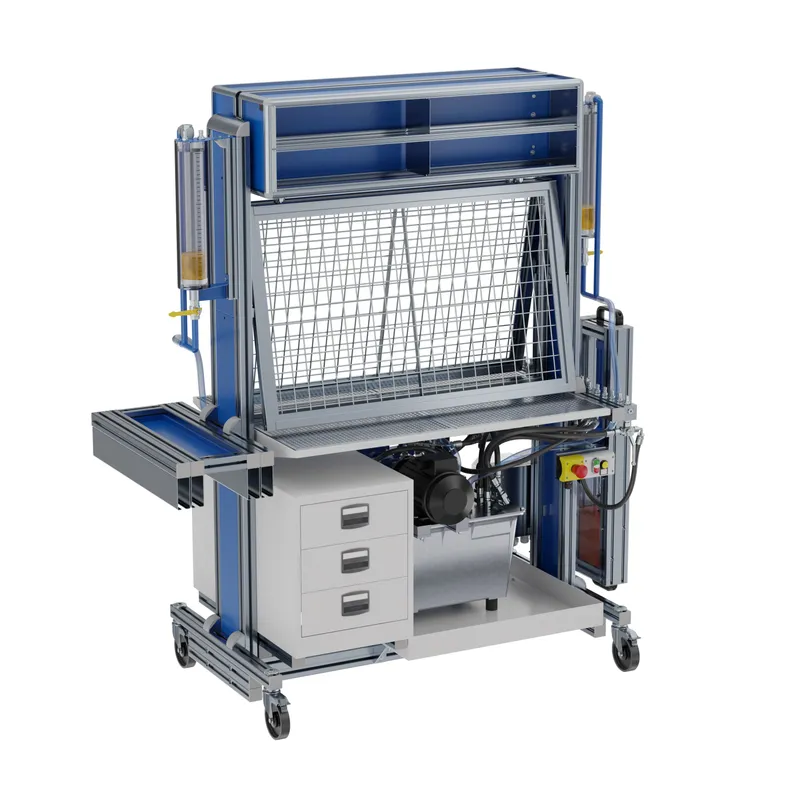

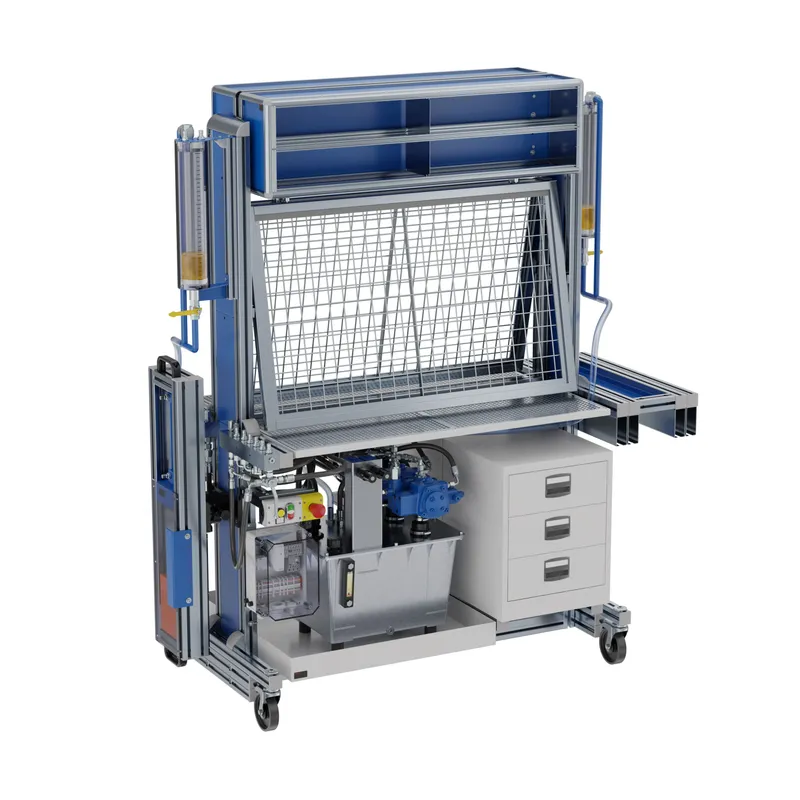

Mobile workstation, suitable for on/off, proportional, control and mobile hydraulics Double-sided for 2-4 apprentices, grid for safe mounting of the hydraulic components Supply voltage: 400 V/50 Hz, with rack for electronic components Power unit with noise-reduced fixed variable displacement pump (load sensing) P/T/X distributor with low-leakage oil, self-sealing quick-release coupling connectors Installation container made of painted sheet steel with 3 drawers that can be pulled out 75% Measuring glass with ventilation and bleeding and overflow protection Hose deposit for approx. 50 hydraulics hoses Swivel-mounted load unit for drawing and pushing load, 15 kg
Specifications
Specifications
| Max. flow [l/min] | 8 |
| Operating pressure max. [bar] | 55 |
| Tank capacity [l] | 40 |
| Number of workplaces min. | 2 |
| Number of workplaces max. | 4 |
| Design (one-sided, double-sided) | double-sided |
| Mains frequency [Hz] | 50 |
| Weight [kg] | 496 |
