Bosch Rexroth R901573878

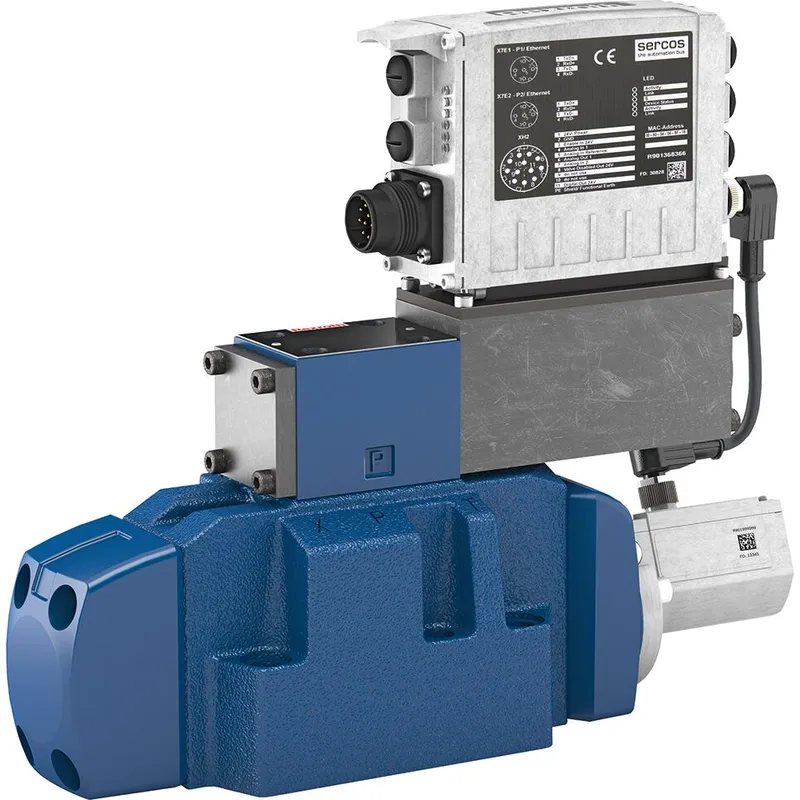

PROPORTIONAL DIRECTIONAL VALVE 4WRLD16E1-250LJ-4X/MXT/24ND6T
- MPN
- R901573878
- Category
- Proportional directional valves
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R901573878?
Industrial hydraulic valve in the high performance range; reliable control of the oil flow direction according to the hydraulic symbol; high accuracy through internal piston position feedback.
Spool valve
Pilot-operated
Linear
External pilot oil supply, internal pilot oil return
Specifications
Specifications
| Connection diagram | ISO 4401-07-07-0-05 |
| Product family | 4WRLD |
| Operating pressure, max. [bar] | 350.0 |
| Max. flow [l/min] | 800.0 |
| Spool symbol | Symbol E1 |
| Type of connection | Subplate mounting |
| Nominal flow [l/min] | 250.0 |
| Size | 16 |
| Type of actuation | Electrical with integrated digital axis controller |
| Number of ports | 4 |
| Number of switching positions | 3 |
| Supply voltage | 24 VDC |
| Electrical connector | Connector, 12-pole (11 + PE) |
| Electrical connection description | Connector 12-pole (11 + PE) according to EN 175201-804 |
| Connectivity | Analog, command value 4…20 mA; Analog, command value ±10 V; Digital, PROFINET RT |
| Conformity description | CE – Electromagnetic compatibility (EMC) directive 2014/30/EU; UKCA – Electromagnetic compatibility (EMC) SI2016/1091 |
| Conformity | CE; UKCA |
| Hydraulic fluid | HFC; HL; HLP; HLPD; HVLP; HVLPD |
| Seals | NBR |
| Weight [kg] | 11.9 |
R901573878: frequently asked questions
When can R901573878 be shipped?
R901573878 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R901573878 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R901573878 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R901573878, subject to availability and destination.
