Bosch Rexroth R901559050

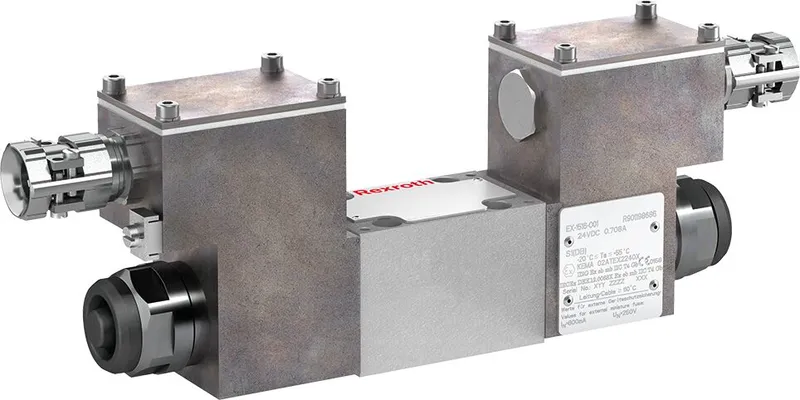

DIRECTIONAL SPOOL VALVE 4WE6J73-6X/EG110NXEZ2

MPN: R901559050
Category: Directional on/off valve

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R901559050?

Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol

Spool valve

Direct actuated

with manual override

Specifications

Connection diagram	ISO 4401-03-02-0-05
Product family	WE 6…E..XE
Operating pressure, max. [bar]	350.0
Spool symbol	Symbol J73
Type of connection	Subplate mounting
Size	6
Type of actuation	with solenoid actuation
Number of ports	4
Number of switching positions	3
Supply voltage	110 VDC
Electrical connector	Cable gland
Electrical connection description	Connector 3-pole (2 + PE) according to EN 175301-803
Conformity description	ATEX – Directive 2014/34/EC conformity assessment (in-house); ATEX – Directive 2014/34/EU; ATEX – Directive 2014/34/EU storage at a notified body; CCC – Ex QAR (QM system); CCC – Ex TR type examination certificate; CE – Low-Voltage Directive 2014/35/EU; UKCA – Low-Voltage Directive SI2016/1091
Conformity	ATEX; CCC-Ex; CE; UKCA
Hydraulic fluid	HFC; HL; HLP; HLPD; HVLP; HVLPD
Seals	NBR
Weight [kg]	0
