Bosch Rexroth R901543463

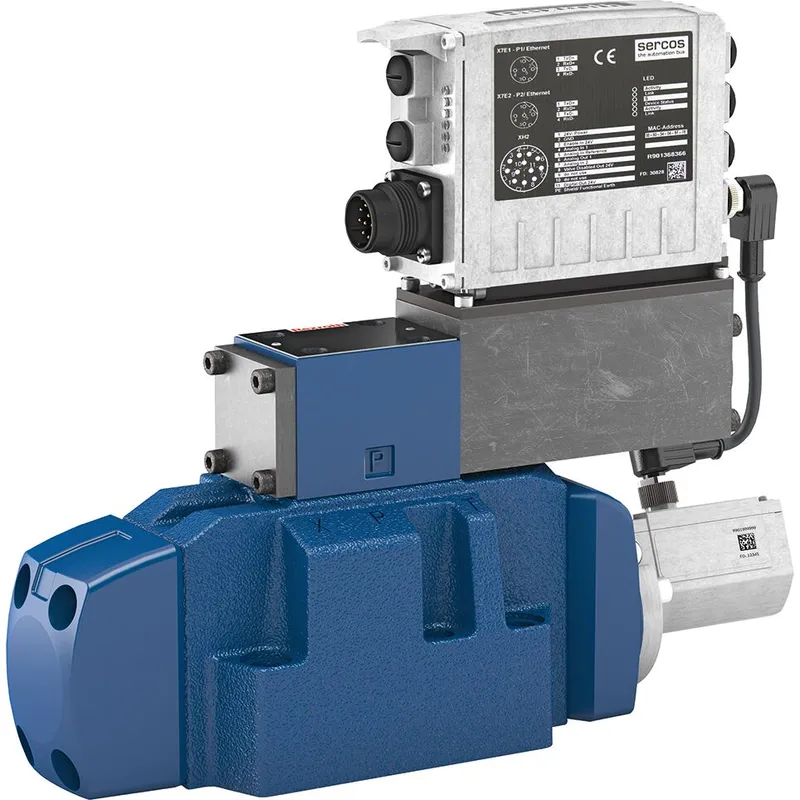

PROPORTIONAL DIRECTIONAL VALVE 4WRLD10V1-100L-4X/MXY/24ND6T

MPN: R901543463
Category: Proportional directional valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R901543463?

Industrial hydraulic valve in the high performance range; reliable control of the oil flow direction according to the hydraulic symbol; high accuracy through internal piston position feedback.

Spool valve

Pilot-operated

Linear

External pilot oil supply, external pilot oil return

Specifications

Connection diagram	ISO 4401-05-05-0-05
Product family	4WRLD
Operating pressure, max. [bar]	350.0
Max. flow [l/min]	300.0
Spool symbol	Symbol V1
Type of connection	Subplate mounting
Nominal flow [l/min]	100.0
Size	10
Type of actuation	Electrical with integrated digital axis controller
Number of ports	4
Number of switching positions	3
Supply voltage	24 VDC
Electrical connector	Connector, 12-pole (11 + PE)
Electrical connection description	Connector 12-pole (11 + PE) according to EN 175201-804
Connectivity	Analog, command value 4…20 mA; Analog, command value ±10 V; Digital, PROFINET RT
Conformity description	CE – Electromagnetic compatibility (EMC) directive 2014/30/EU; UKCA – Electromagnetic compatibility (EMC) SI2016/1091
Conformity	CE; UKCA
Hydraulic fluid	HFC; HL; HLP; HLPD; HVLP; HVLPD
Seals	NBR
Weight [kg]	9.08
