DIRECTIONAL SPOOL VALVE 4WE10MA5X/EW120N9K4/M
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Directional on/off valve |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R901535961 be shipped?
R901535961 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R901535961 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R901535961 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R901535961, subject to availability and destination.
Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol
Specifications
Specifications
| Connection diagram | ISO 4401-05-04-0-05 |
| Product family | WE10../E |
| Operating pressure, max. [bar] | 350.0 |
| Max. flow [l/min] | 90.0 |
| Spool symbol | Symbol MA |
| Type of connection | Subplate mounting |
| Size | 10 |
| Type of actuation | with solenoid actuation |
| Number of ports | 4 |
| Number of switching positions | 2 |
| Supply voltage | 120 VAC 50/60Hz |
| Electrical connector | Connector, 3-pole (2 + PE) |
| Electrical connection description | Connector 3-pole (2 + PE) according to EN 175301-803 |
| Conformity description | CE – Low-Voltage Directive 2014/35/EU; UKCA – Low-Voltage Directive SI2016/1091 |
| Conformity | CE; UKCA |
| Hydraulic fluid | HFC; HL; HLP; HLPD; HVLP; HVLPD |
| Seals | NBR |
| Weight [kg] | 5.4 |
More Bosch Rexroth parts
Available on requestPROPORTIONAL DIRECTIONAL VALVE 4WRDE25V220L-6X/MXY/24A5

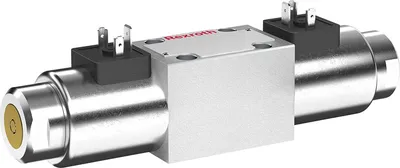

Available on requestDIRECTIONAL SPOOL VALVE 4WE6C6X/OFEG24N9XNK4
Available on requestRADIAL PISTON PUMP PR4-3X/8,00-500RA01V01-C3.1

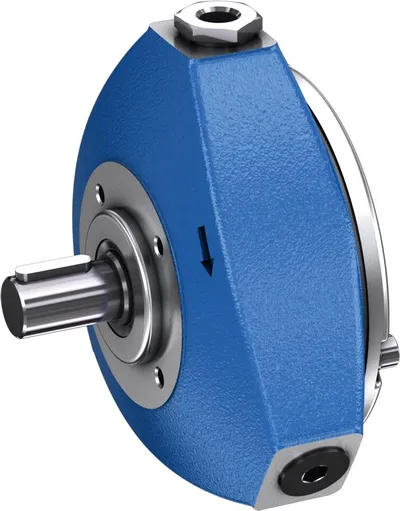

Available on requestRADIAL PISTON PUMP PR4-3X/5,00-500RA01V01-C3.1
