Bosch Rexroth R901526164

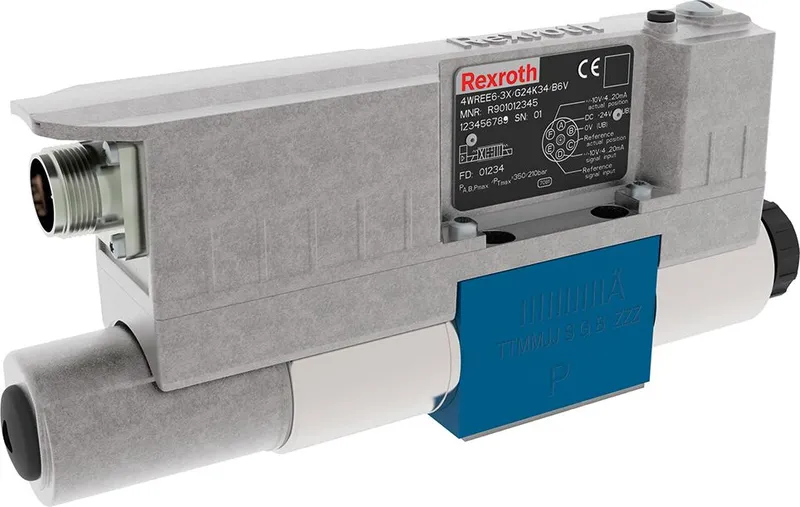

PROPORTIONAL DIRECTIONAL VALVE 4WREE6WA08-3X/V/24A1

MPN: R901526164
Category: Proportional directional valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R901526164?

Industrial hydraulic valve in a high performance range, reliable control of oil flow direction according to hydraulic symbol, high accuracy through internal piston position feedback

Spool valve

Direct actuated

Specifications

Connection diagram	ISO 4401-03-02-0-05
Product family	4WREE
Installation position	any
Operating pressure, max. [bar]	350.0
Max. flow [l/min]	80.0
Spool symbol	Symbol WA
Type of connection	Subplate mounting
Nominal flow [l/min]	8.0
Size	6
Type of actuation	Electrical with on-board electronics
Number of ports	4
Number of switching positions	2
Supply voltage	24 VDC
Electrical connector	Connector, 7-pole (6 + PE)
Electrical connection description	Connector 7-pole (6 + PE) according to EN 175201-804
Connectivity	Analog, command value 0…10 V
Conformity description	CE – Electromagnetic compatibility (EMC) directive 2014/30/EU; UKCA – Electromagnetic compatibility (EMC) SI2016/1091
Conformity	CE; UKCA
Hydraulic fluid	HEES; HEPG; HETG; HFDR; HFDU; HL; HLP; HLPD; HVLP; HVLPD
Seals	FKM
Weight [kg]	2.13
