Bosch Rexroth R901520743

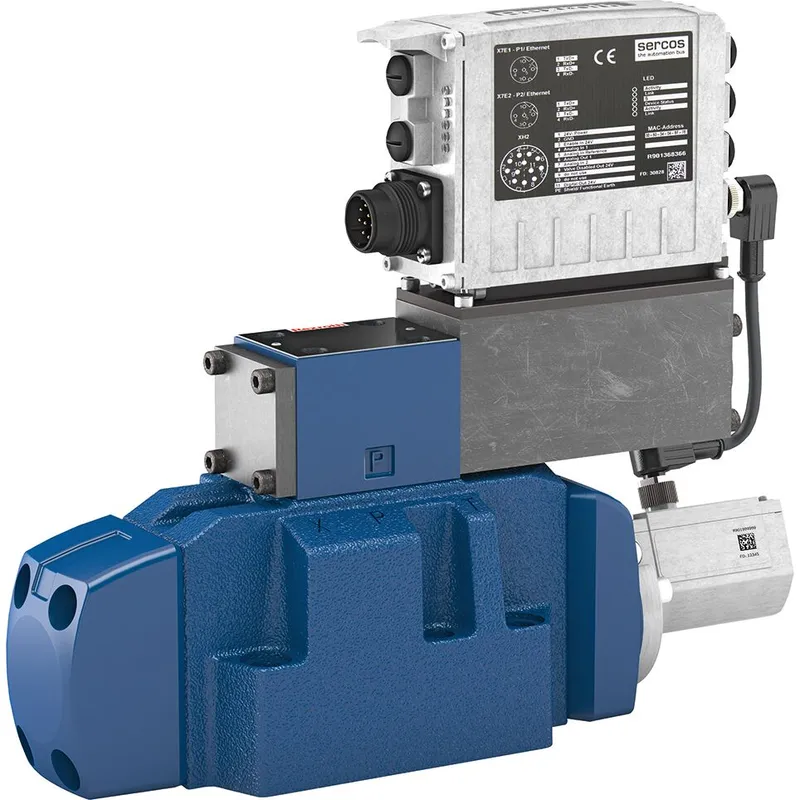

PROPORTIONAL DIRECTIONAL VALVE 4WRLD16V1-150L-4X/MPT/24ED6T
- MPN
- R901520743
- Category
- Proportional directional valves
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R901520743?
Industrial hydraulic valve in the high performance range; reliable control of the oil flow direction according to the hydraulic symbol; high accuracy through internal piston position feedback.
Spool valve
Pilot-operated
Linear
Internal pilot oil supply, internal pilot oil return
Specifications
Specifications
| Connection diagram | ISO 4401-07-07-0-05 |
| Product family | 4WRLD |
| Operating pressure, max. [bar] | 280.0 |
| Max. flow [l/min] | 800.0 |
| Spool symbol | Symbol V1 |
| Type of connection | Subplate mounting |
| Nominal flow [l/min] | 250.0 |
| Size | 16 |
| Type of actuation | Electrical with integrated digital axis controller |
| Number of ports | 4 |
| Number of switching positions | 3 |
| Supply voltage | 24 VDC |
| Electrical connector | Connector, 12-pole (11 + PE) |
| Electrical connection description | Connector 12-pole (11 + PE) according to EN 175201-804 |
| Connectivity | Analog, command value 4…20 mA; Analog, command value ±10 V; Digital, EtherNET/IP |
| Conformity description | CE – Electromagnetic compatibility (EMC) directive 2014/30/EU; UKCA – Electromagnetic compatibility (EMC) SI2016/1091 |
| Conformity | CE; UKCA |
| Hydraulic fluid | HFC; HL; HLP; HLPD; HVLP; HVLPD |
| Seals | NBR |
| Weight [kg] | 11.58 |
