Bosch Rexroth R901513943 – DIRECTIONAL SPOOL VALVE 4WEH16J7X/6EW110RN9EDK6L/B10V
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Directional on/off valve |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R901513943 be shipped?
R901513943 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R901513943 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R901513943 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R901513943, subject to availability and destination.
Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol.
Spool valve
Pilot-operated
Internal pilot oil supply, external pilot oil return
Specifications
Specifications
| Connection diagram | ISO 4401-07-07-0-05 |
| Product family | H-4W.H.. |
| Operating pressure, max. [bar] | 280.0 |
| Max. flow [l/min] | 300.0 |
| Spool symbol | Symbol J |
| Type of connection | Subplate mounting |
| Size | 16 |
| Type of actuation | with solenoid actuation |
| Number of ports | 4 |
| Number of switching positions | 3 |
| Supply voltage | 110 VAC (mit Gleichrichter) |
| Electrical connector | Connector, 7-pole (6 + PE) |
| Electrical connection description | Connector 3-pole (2 + PE) according to EN 175301-803 |
| Conformity description | CE – Low-Voltage Directive 2014/35/EU; UKCA – Low-Voltage Directive SI2016/1091 |
| Conformity | CE; UKCA |
| Hydraulic fluid | HEES; HEPG; HETG; HFDR; HFDU; HL; HLP; HLPD; HVLP; HVLPD |
| Seals | FKM |
| Weight [kg] | 9.81 |
More Bosch Rexroth parts
Available on requestPROPORTIONAL DIRECTIONAL VALVE 4WRDE10V1-50L-6X/MPT/24A5
Available on requestDIRECTIONAL SPOOL VALVE 4WE10C5X/EG24N9K4/B08M
Available on requestDIRECTIONAL SPOOL VALVE 4WE10C5X/DEG205N9K4/M
Available on requestDIRECTIONAL SPOOL VALVE 4WE6X36A6X/EG24NXEZ2/V

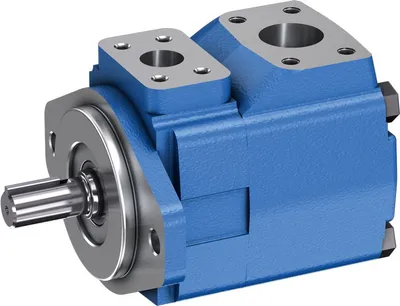

Available on requestVANE PUMP PVV2-1X/060LJ15UMBK02
Available on requestVANE PUMP PVV2-1X/060LJ15UMB
Available on requestDIRECTIONAL SPOOL VALVE 4WEH16J7X/6EW110RN9ESDK6L/B10V

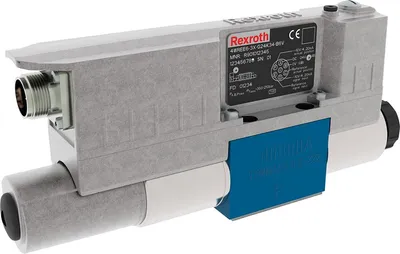

Available on requestPROPORTIONAL DIRECTIONAL VALVE 4WREE6E04-3X/V/24A1
