Bosch Rexroth R901489851

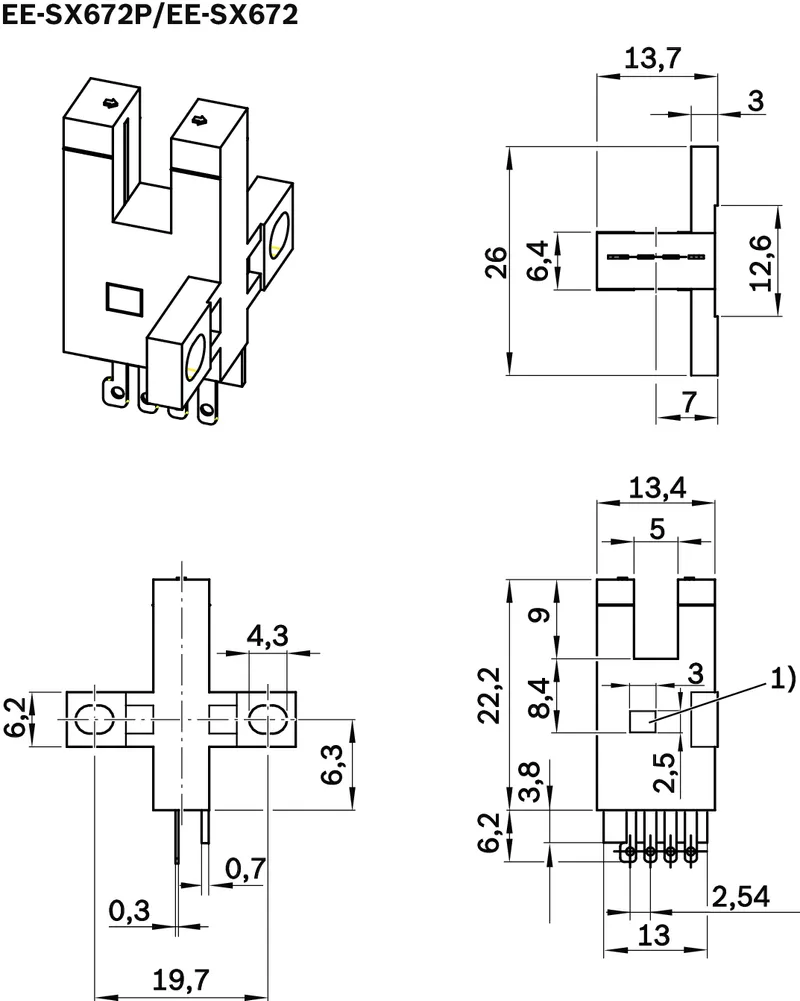

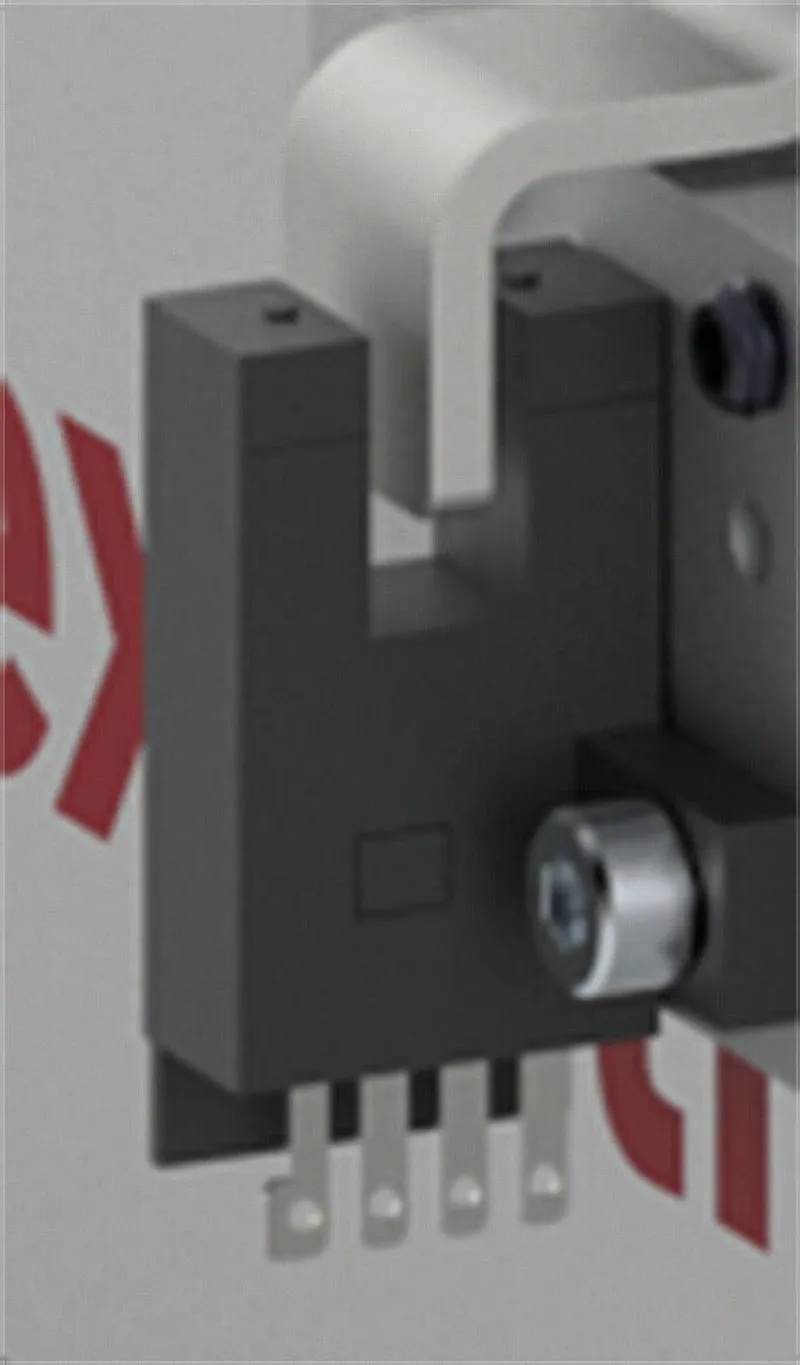

PHOTOELEC LIGHT BARRIER EE-SX672

MPN: R901489851
Category: Electrical accessories for linear axes

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R901489851?

Bosch Rexroth PHOTOELEC LIGHT BARRIER EE-SX672, manufacturer part number R901489851. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Electrical accessories for linear axes	Optical sensors
Use	Limit switch / reference switch
Housing material	Polybutylene terephthalate (PBT)
Operating temperature (min. … max.)	-25 °C ... +55 °C
Storage temperature (min. … max.)	-30 °C ... +80 °C
Note: permissible operating temperature (min. ... max.)	Without freezing or condensation
Operating moisture	5% ... 85%
Designation	EE-SX672 optical sensor
Differential distance [mm]	0.025
Weight [kg]	0.01
Functional principle	NPN
Operating moisture footnote	Without freezing or condensation
Bearing moisture footnote	Without freezing or condensation
Storage temperature footnote	Without freezing or condensation
Footnote min. response frequency	average 3 kHz
Footnote shock resistance damage	3x in x-, y- and z-direction each
Footnote ambient lighting	with fluorescent light on receiver surface.
Note on protection class	IEC60529
Indicator	Light indicator (red; turns on when the light is broken in models ending in A or R)
Compatible	FMS, FMB
Bearing moisture	5% ... 95%
Light source	Infrared LED with peak wavelength of 940 nm
Mass connector models [g]	2.4
Mass of prewired models [g]	17.8
Operating moisture max [%]	85
Maximum operating temperature [°C]	+55
Bearing moisture max [%]	95
Bearing temperature max [°C]	+80
Current consumption connector models (max.) [mA]	12
Current consumption prewired models (max.) [mA]	35
Max. ambient lighting [lx]	1000
Response frequency min [kHz]	1
Operating moisture min [%]	5
Minimum operating temperature [°C]	-25
Bearing moisture min [%]	5
Bearing temperature min [°C]	-30
Min. switching object dimensions	2 mmx0.8 mm
Switching object	Opaque
Protection class	IP50
Protective circuits connector models	Load short circuit protection
Protective circuits in prewired models	No circuit protection
Sensor spacing (slot width) [mm]	5
Control output	Open collector NPN: 5... 24 VDC, max. 100 mA 100 mA load current with residual voltage of max. 0.8 V 40 mA load current with residual voltage of max. 0.4 V OFF current (leakage current): max. 0.5 mA
Shock resistance damage [m/s²]	500
Connection method for models with connections	Standard cable length: 0.1 m
Connection method for connector models	Direct soldering possible
Connection method for prewired models	Standard cable length: 1 m
Supply voltage (min. … max.)	5 V ... 24 V
Vibration resistance	Damage: 20 ... 2000 Hz (peak acceleration: 100 m/s<sup>2</sup>) 1.5 mm double amplitude for 2 h (4 min periods) in x-, y- and z-direction each
Material cover	Polycarbonate
Transmitter/receiver material	Polycarbonate
