Bosch Rexroth R901472374

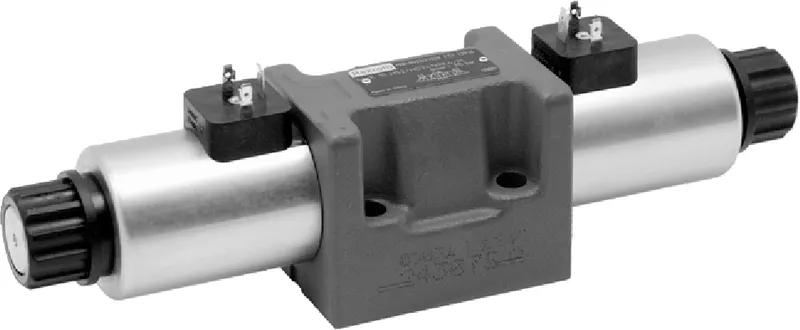

DIRECTIONAL SPOOL VALVE 3WE10B5X/HG24N9K4QYAG24/M

MPN: R901472374
Category: Directional on/off valve

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R901472374?

Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol

With concealed auxiliary actuation

Spool valve

Direct actuated

Industrial hydraulic valve in a high performance range

Reliable switching of the oil flow direction according to hydraulic symbol

Specifications

Connection diagram	ISO 4401-05-04-0-05
Product family	WE10../H
Operating pressure, max. [bar]	315.0
Max. flow [l/min]	135.0
Spool symbol	Symbol B
Type of connection	Subplate mounting
Size	10
Type of actuation	with solenoid actuation
Number of ports	3
Number of switching positions	2
Supply voltage	24 VDC
Electrical connector	Connector, 3-pole (2 + PE)
Electrical connection description	Connector 3-pole (2 + PE) according to EN 175301-803
Hydraulic fluid	HFC; HL; HLP; HLPD; HVLP; HVLPD
Seals	NBR
Weight [kg]	3.48
