Bosch Rexroth R901469316

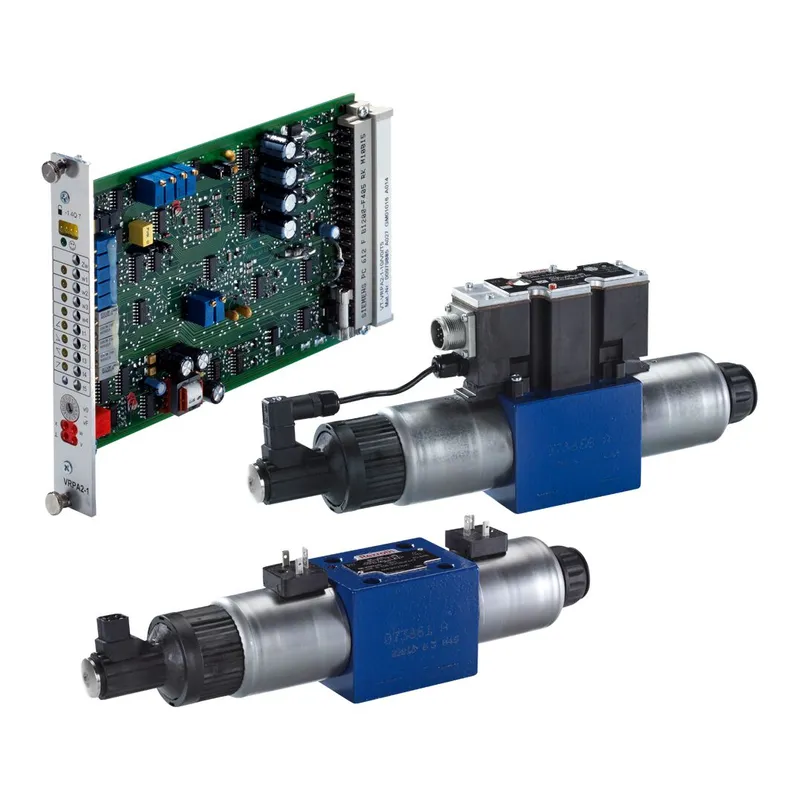

PROPORTIONAL DIRECTIONAL VALVE 4WREE6E04-2X/G24K31/F1M-742

MPN: R901469316
Category: Proportional directional valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R901469316?

Industrial hydraulic valve in the high performance range; reliable control of the oil flow direction according to the hydraulic symbol; high accuracy through internal piston position feedback

Spool valve

Direct actuated

Specifications

Connection diagram	ISO 4401-03-02-0-05
Product family	4WRE(E)6,10
Operating pressure, max. [bar]	315.0
Max. flow [l/min]	20.0
Spool symbol	Symbol E
Type of connection	Subplate mounting
Nominal flow [l/min]	4.0
Size	6
Type of actuation	Electrical with on-board electronics
Number of ports	4
Number of switching positions	3
Supply voltage	24 VDC
Electrical connector	Connector, 7-pole (6 + PE)
Electrical connection description	Connector 7-pole (6 + PE) according to EN 175201-804
Connectivity	Analog, command value 4…20 mA
Hydraulic fluid	HFC; HL; HLP; HLPD; HVLP; HVLPD
Seals	NBR
Weight [kg]	2.42
