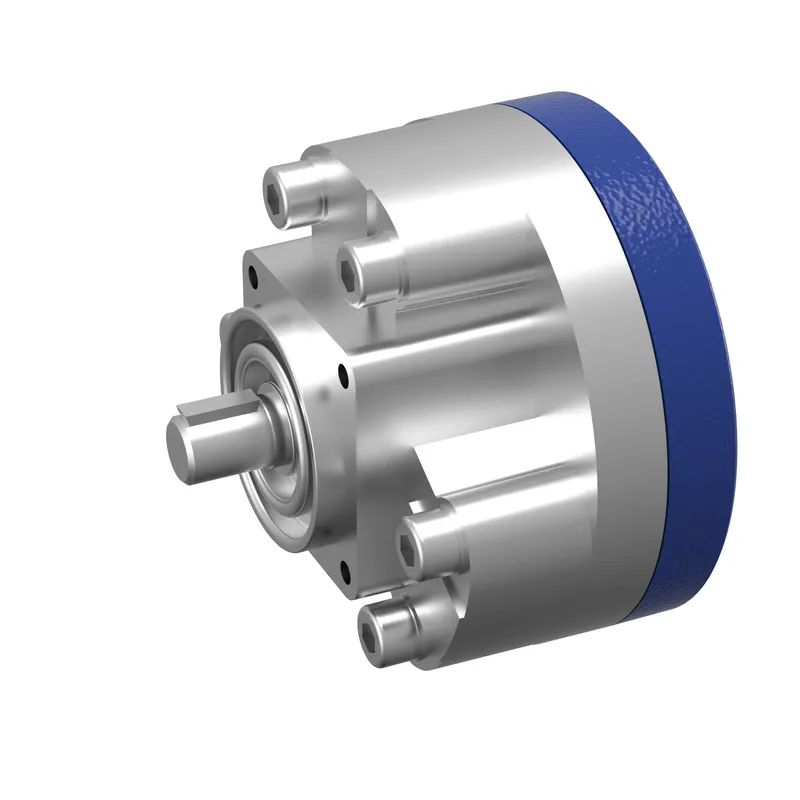

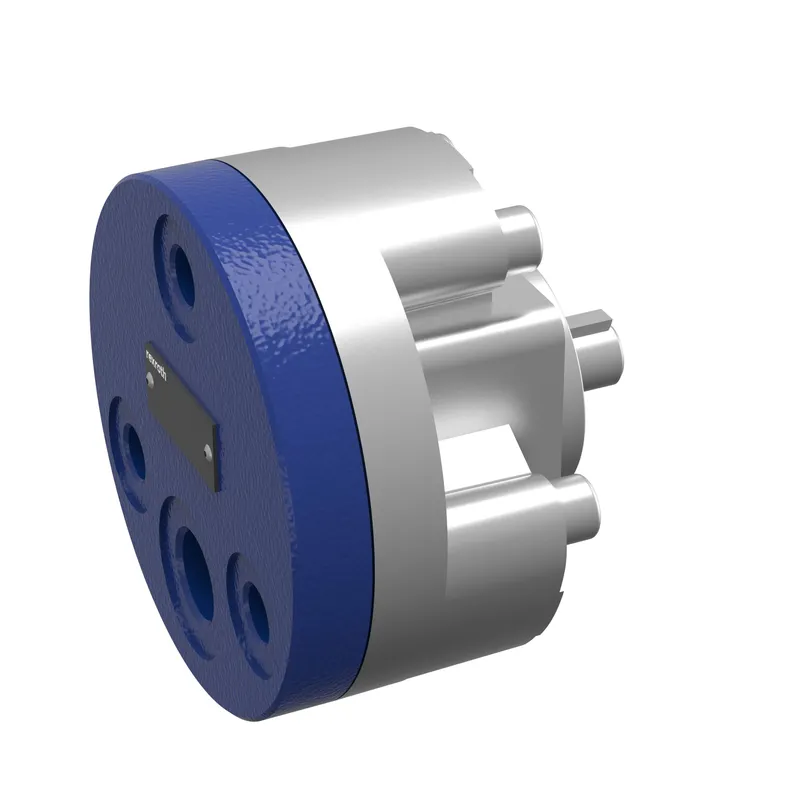

RADIAL PISTON PUMP PR4-1X/0,40-700WA01M03
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Radial piston pumps |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R901456052 be shipped?
R901456052 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R901456052 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R901456052 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R901456052, subject to availability and destination.
Small 3-piston pump with 3 pressure ports. Self-priming, with valve control. Long service life thanks to hydrodynamic plain bearing. Housing made cast iron and cover made of aluminum Radial piston pump with constant displacement For industrial applications in open circuit With NBR seals
Specifications
Specifications
| Displacement type | constant |
| Size [cm³] | 0.4 |
| Product family | PR4 |
| Operating pressure, max. [bar] | 700.0 |
| Max. flow [l/min] | 1.36 |
| Through-drive | without |
| Direction of rotation | counterclockwise and clockwise rotation |
| Shaft end | Cylindrical Ø 14 mm with fitting key |
| Mounting flange | 4-hole fastening centering 50 mm |
| Hydraulic fluid | HLP; HLPD; HVLP; HVLPD |
| Seals | NBR |
| Weight [kg] | 2.79 |
