DIRECTIONAL SPOOL VALVE 4WEH10H4X/6EG24N9ETSK4/B10D3
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Directional on/off valve |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R901408216 be shipped?
R901408216 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R901408216 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R901408216 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R901408216, subject to availability and destination.
Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol.
Spool valve
Pilot-operated
Internal pilot oil supply, internal pilot oil return
Specifications
Specifications
| Connection diagram | ISO 4401-05-05-0-05 |
| Product family | H-4W.H.. |
| Operating pressure, max. [bar] | 280.0 |
| Max. flow [l/min] | 160.0 |
| Spool symbol | Symbol H |
| Type of connection | Subplate mounting |
| Size | 10 |
| Type of actuation | with solenoid actuation |
| Number of ports | 4 |
| Number of switching positions | 3 |
| Supply voltage | 24 VDC |
| Electrical connector | Connector, 3-pole (2 + PE) |
| Electrical connection description | Connector 3-pole (2 + PE) according to EN 175301-803 |
| Hydraulic fluid | HFC; HL; HLP; HLPD; HVLP; HVLPD |
| Seals | NBR |
| Weight [kg] | 8.83 |
More Bosch Rexroth parts
Available on requestMULTISTATION MANIFOLD 6HSR10-35/01D SO8 FE//ZN8//CN/T0
Available on requestMULTISTATION MANIFOLD 4HSR10-35/01D SO8 FE//ZN8//CN/T0
Available on requestEXERCISE BOOK TW-PN-SH-2/X 201EN
Available on requestVANE PUMP PVQ4-1X/098RA15RMC

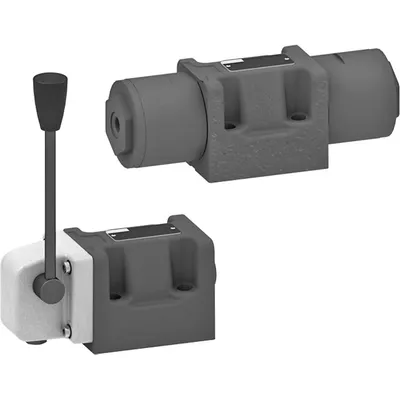

Available on requestDIRECTIONAL SPOOL VALVE 3WMM10A5X//B08M

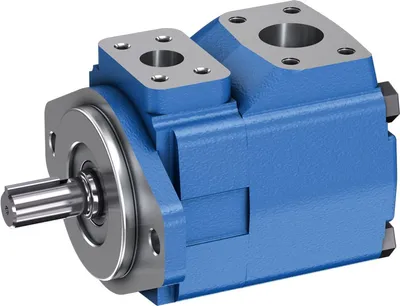

Available on requestVANE PUMP PVQ2-1X/045RB15UMB-C3.1
