Bosch Rexroth R901388352

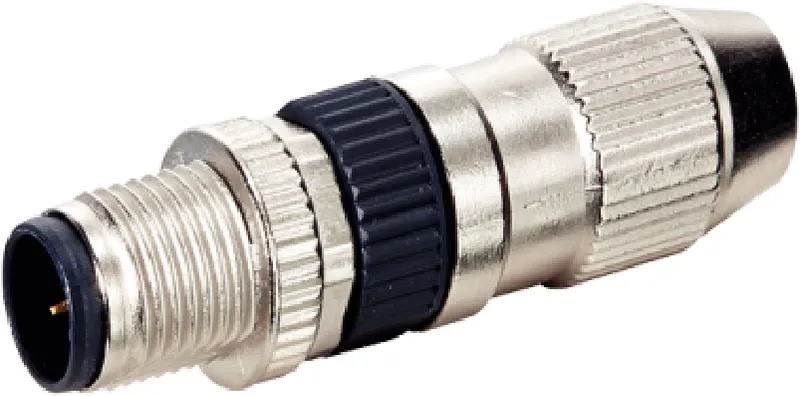

CONDUCTOR PLUG M12X1 4POL TOOL-FREE

MPN: R901388352
Category: Electrical accessories for electromechanical cylinders

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R901388352?

Bosch Rexroth CONDUCTOR PLUG M12X1 4POL TOOL-FREE, manufacturer part number R901388352. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Electrical accessories for electromechanical cylinders	Connector
Electrical accessories for linear axes	Connector
Use	Connector, single
Version	straight
Connection type	Connector, straight, M12x1, 4-pin, IDC, self-locking screw
Connection cross-section (min. … max.)	0.14 mm² ... 0.34 mm²
Permissible ambient temperature (min. ... max.)	-25 °C ... +85 °C
Operating voltage (min. … max.)	32 V
Operating voltage indicator	no
Weight [kg]	0.03
Function indicator	no
Note on protection class	inserted & screwed down
Maximum operating current per contact [A]	4
Protection class	IP67

R901388352: frequently asked questions

When can R901388352 be shipped?

R901388352 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R901388352 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R901388352 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R901388352, subject to availability and destination.
