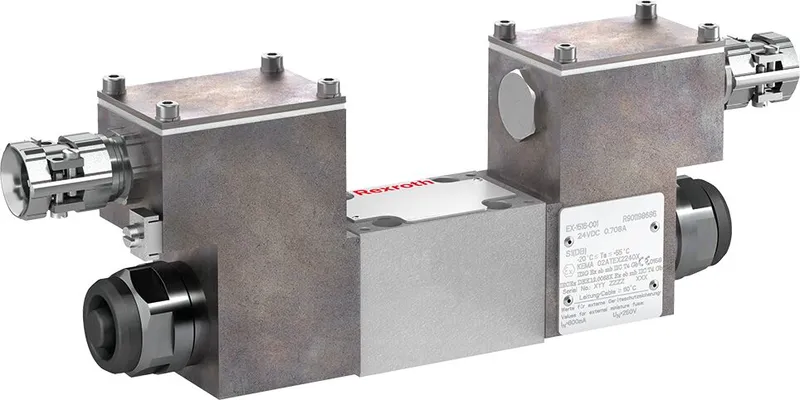

Bosch Rexroth R901286231
DIRECTIONAL SPOOL VALVE 4WE6V6X/EG24NXEZ2
- MPN
- R901286231
- Category
- Directional on/off valve
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R901286231?
Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol
Spool valve
Direct actuated
with manual override
Specifications
Specifications
| Connection diagram | ISO 4401-03-02-0-05 |
| Product family | WE 6…E..XE |
| Operating pressure, max. [bar] | 350.0 |
| Max. flow [l/min] | 30.0 |
| Spool symbol | Symbol V |
| Type of connection | Subplate mounting |
| Size | 6 |
| Type of actuation | with solenoid actuation |
| Number of ports | 4 |
| Number of switching positions | 3 |
| Supply voltage | 24 VDC |
| Electrical connector | Cable gland |
| Electrical connection description | Connector 3-pole (2 + PE) according to EN 175301-803 |
| Conformity description | ATEX – Directive 2014/34/EC conformity assessment (in-house); ATEX – Directive 2014/34/EU; ATEX – Directive 2014/34/EU storage at a notified body; CCC – Ex QAR (QM system); CCC – Ex TR type examination certificate |
| Conformity | ATEX; CCC-Ex |
| Hydraulic fluid | HFC; HL; HLP; HLPD; HVLP; HVLPD |
| Seals | NBR |
| Weight [kg] | 4.02 |
R901286231: frequently asked questions
When can R901286231 be shipped?
R901286231 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R901286231 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R901286231 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R901286231, subject to availability and destination.
