Bosch Rexroth R901260687

INTERNAL GEAR PUMP PGH5-3X/063LR11VU2

MPN
R901260687
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R901260687?

Optimized for variable-speed drives. Low noise and low pulsation level. High efficiency. No load cycle limitation

Internal gear pump with constant displacement

For industrial applications in open circuit

With FKM seals

Cast iron housing

Specifications

Specifications

Displacement typeconstant
Product familyPGH
Operating pressure, max. [bar]315.0
Max. flow [l/min]189.0
Size63
Through-drivewith
Direction of rotationcounterclockwise rotation
Shaft endGeared 38-4, 17T 12/24 DP, ISO 3019-1
Mounting flange2-hole mounting flange 127-2 according to ISO 3019-1
Hydraulic fluidHEES; HEPG; HETG; HFDR; HFDU; HLP; HLPD; HVLP; HVLPD
SealsFKM
Moment of inertia [kg•cm²/m]0.00237
Suction pressure, min. [bar]0.8
Suction pressure, max. [bar]2
Operating pressure max. special fluids [bar]220
Weight [kg]43.48

R901260687: frequently asked questions

When can R901260687 be shipped?

R901260687 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R901260687 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R901260687 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R901260687, subject to availability and destination.

More Bosch Rexroth parts

Bosch Rexroth R901260291 – DIRECTIONAL SPOOL VALVE 4WE6D46-6X/OFEG24N4K4/ZSO407
Bosch Rexroth
R901260291

DIRECTIONAL SPOOL VALVE 4WE6D46-6X/OFEG24N4K4/ZSO407

Bosch Rexroth R901260472 – DIRECTIONAL SPOOL VALVE 4WEH10W4X/6EG24N9ETS2K4/B10D3
Bosch Rexroth
R901260472

DIRECTIONAL SPOOL VALVE 4WEH10W4X/6EG24N9ETS2K4/B10D3

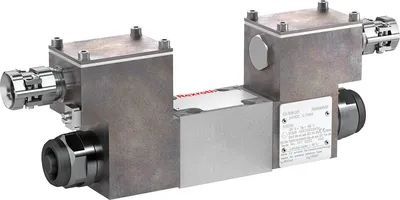

Bosch Rexroth R901260658 – DIRECTIONAL SPOOL VALVE 4WE6EA6X/EG48NXEZ2/V
