DIRECTIONAL SPOOL VALVE 4WE6Y6X/EW110N9DAL/B10
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Directional on/off valve |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R901197470 be shipped?
R901197470 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R901197470 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R901197470 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R901197470, subject to availability and destination.
Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol.
Spool valve
Direct actuated
Specifications
Specifications
| Connection diagram | ISO 4401-03-02-0-05 |
| Product family | WE6../E |
| Operating pressure, max. [bar] | 350.0 |
| Max. flow [l/min] | 60.0 |
| Spool symbol | Symbol Y |
| Size | 6 |
| Type of actuation | with solenoid actuation |
| Number of ports | 4 |
| Number of switching positions | 2 |
| Supply voltage | 110…120 VAC |
| Electrical connector | Cable gland |
| Electrical connection description | Cable gland, threaded connection 1/2"-14 NPT, with LED |
| Conformity description | CE – Low-Voltage Directive 2014/35/EU; UKCA – Low-Voltage Directive SI2016/1091 |
| Conformity | CE; UKCA |
| Hydraulic fluid | HFC; HL; HLP; HLPD; HVLP; HVLPD |
| Seals | NBR |
| Weight [kg] | 1.8 |
More Bosch Rexroth parts

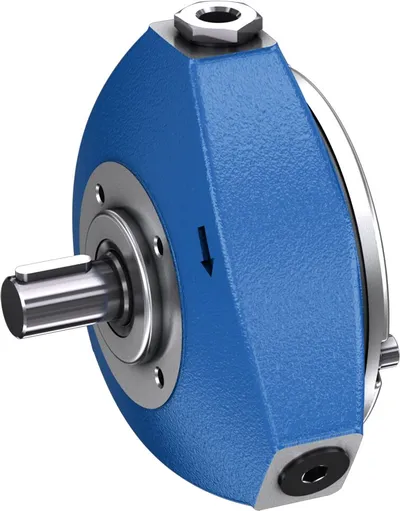

Available on requestRADIAL PISTON PUMP PR4-3X/20,00-500RA12M12
